Cutter head CMT with interchangeable HSS knives and limiters 693.101 D100x40-50 mm
The CMT cutter head with interchangeable HSS blades is used for processing solid wood for manual and machine feeding. The cutter head has a diameter of 100 mm, the height of 40 mm and a borehole diameter of 30 or 35 mm.
The CMT 693.101 cutter head is made of STEEL alloy with interchangeable HSS blades and limiters that prevent the kickback during processing. It is intended for cutting in hard and soft solid wood. The cutter head diameter without the inserted knives is 100 mm, while the diameter with inserted knives is 138 mm.
The cutter head is suitable for use on conventional table router machines and allows the shank diameters of 30 and 35 mm.

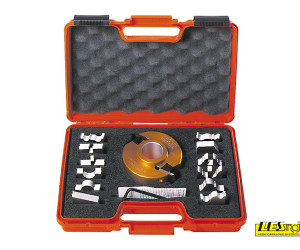

The cutter head is delivered in a strong plastic case with additional compartments for the blades and limiters.
The set includes:
⎻ steel cutter head,
⎻ two 40 mm blades (690.000),
⎻ two 40 mm limiters (691.000),
⎻ two wedges (693.999.01),
⎻ blade changing tool (991.073.00).
Technical data:
⎻ cutter diameter: 100 mm;
⎻ working height: 51 mm;
⎻ borehole diameter: 30 or 35 mm.
Additional HSS blades (option to buy):
⎻ blades (order number: 690),
⎻ limiters (order number: 691).
Model | Bore dia. (B/d-mm) | Unit price | Buy | |
---|---|---|---|---|
693.101.30 | 30 |
– 18%
€123.08
|
![]() |
|
693.101.35 | 35 |
– 18%
€123.08
|
![]() |
