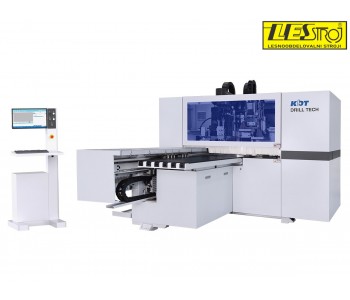

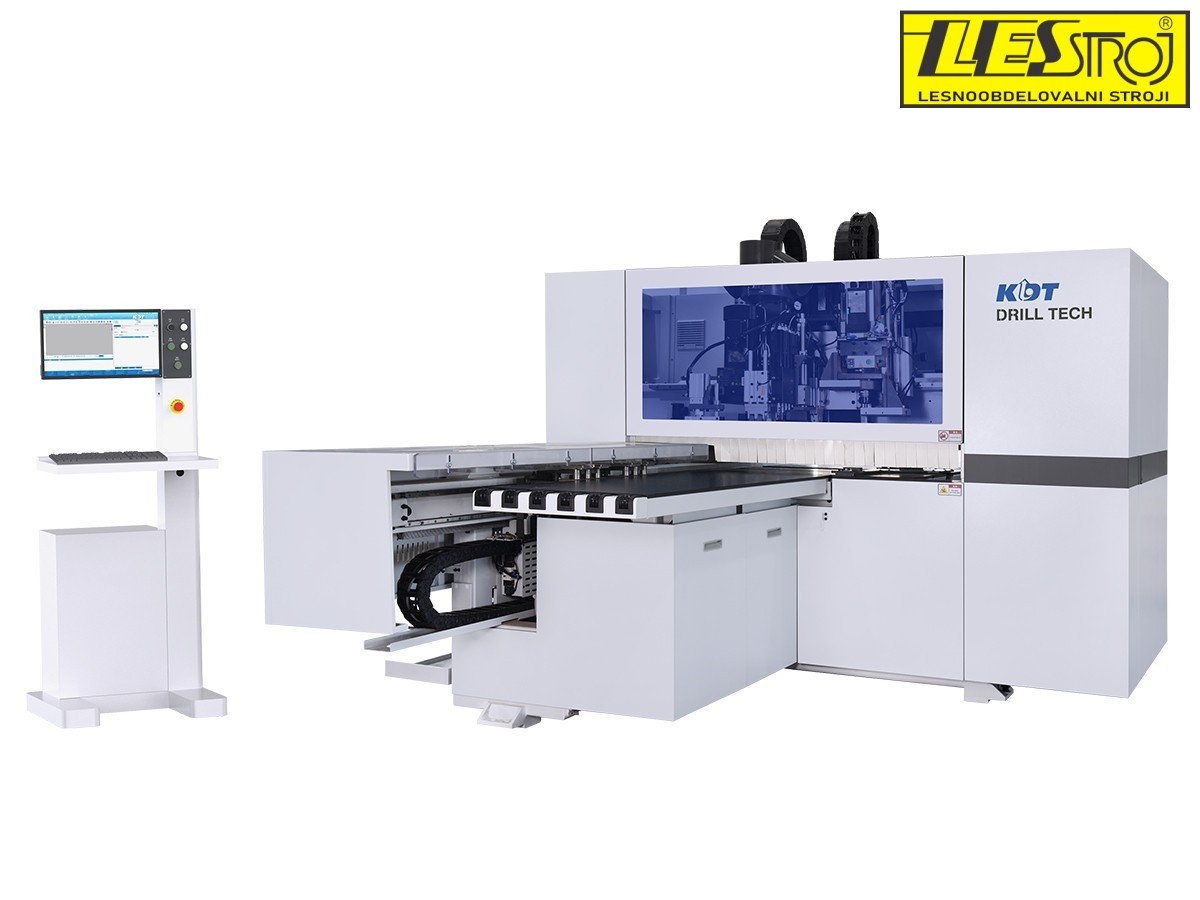

KDT KD-610H Thoughfeed CNC Processing Machine
Brand:
1000 mm working width
The KDT KD-610 H is the most basic KDT flow machining CNC machine.
Powerful and very affordable.
Configuration: 2 drilling units, 2 milling units, groove saw, 1000 mm working width!
6 Side Machining –One drill head is mounted on the top, one on the bottom (20 + 9 drills). Possible processing of two workpieces at the same time.
Extraordinary processing speed: 140/90/50 m/min.
Groove saw 120 mm.
5.5 kW milling unit with MK2 attachment.
The minimum dimension of the workpiece is only 70×35 mm.
Powerful software equipment with many innovative solutions for fast and more efficient work.
Barcode reader.
Includes software for LestrojBOX furniture construction.
Main features of KDT KD-610 H Drilling/Routing CNC machine
Operating the machine is easy on a personal industrial PC with a Windows environment and the user-friendly KDT DrillTop software. A barcode reader is included for working with barcodes. The KDT KN-610 HZ machine has ONLINE service enabled with TeamViewer. Programs can be created both on the machine and in the office. It is possible to connect the machine to programs such as MegaTISCHLER, Corpus 3D, LestrojBox, Alphacam and Solidworks. The program is easy to use, graphically supported and parametric.
Features of the KDT KD-610 H machine
KD-610 H is equipped with a 5.5 kW milling unit for grooves and cutouts with automatic tool change and an integrated groove saw with a diameter of 120 mm intended for making a groove for back.
The CNC machine is equipped with a pair of independent clamps and automatically adjusts the clamps according to the position of the holes. The length of the pliers guides is 5500 mm for processing long pieces without gripping the pliers. Entry air worktable is for easier movement of workpieces, especially workpieces with a sensitive surface.
Double pliers are intended for faster work and more precise gripping. The conveyor belt is intended for moving waste material from the machine.
Flow CNC KDT KD-610 H is easy to use, as it does not require mechanical settings, and with the use of barcodes, it does not require an experienced user to work directly on the machine.
Technical characteristics and equipment of the KDT KD-610 H machine
- 2 independent drilling units + milling aggregate 5.5 kW,
- drilling units (above) with 12 vertical + 8 horizontal drills,
- one drilling unit (below) with 9 vertical drills,
- processing from all six sides of the workpiece,
- integrated saw diameter 120 mm and thickness 4 mm,
- industrial personal computer with Windows environment and KDT software, controller,
- double independent pincers,
- barcode reader,
- input air table + output air work table.
- safety guardrails and CE certificate,
- length of the workpiece: 70 - 2850 mm,
- width of the workpiece: 50 - 1000 mm or min. width 35 mm, if the workpiece is shorter than 1000 mm,
- workpiece thickness: 9 - 60 mm,
- moving speed of the tongs: 140 m/min,
- total dimensions: 7300 × 2660 × 2190 mm,
- total connected power: 21.9 kW,
- weight: 2900 kg.
