Dowel drill bits HW 310.21/22
The 310.21/22 drill bit for drilling in solid wood and composite materials on boring machines.
The 310.21/22 dowel drill bit is entirely made of HW and sharpened with XTreme form. The drill bits have diameters ranging from 1.3 to 10 mm.
The shank has a diameter of 10 mm and a length ranging from 25 to 30 mm.
The drill bits with right- and left-hand rotation are available.

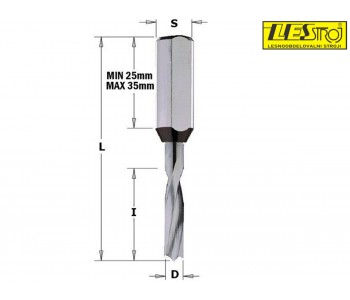

Model | Diameter (D-mm) | Cutt. leng. (I-mm) | Tot. leng. (L-mm) | Shank dia. (S-mm) | Rotation | Unit price | Buy | |
---|---|---|---|---|---|---|---|---|
310.013.20 | 1,3 | 5 | 57,5 | 10x30 | Right-hand/Left-hand |
– 10%
€17.37
|
||
310.020.21 | 2 | 12 | 57,5 | 10x27 | Right-hand |
– 10%
€18.09
|
||
310.020.22 | 2 | 12 | 57,5 | 10x27 | Left-hand |
– 10%
€18.09
|
||
310.030.21 | 3 | 18 | 57,5 | 10x25 | Right-hand |
– 10%
€18.09
|
||
310.030.22 | 3 | 18 | 57,5 | 10x25 | Left-hand |
– 10%
€18.09
|
