Square chisel mortising bits
The drill bits are intended for use on special machines for drilling square holes. The bits are available with a diameter of 6 to 18 mm and a working length of 45 to 95 mm.

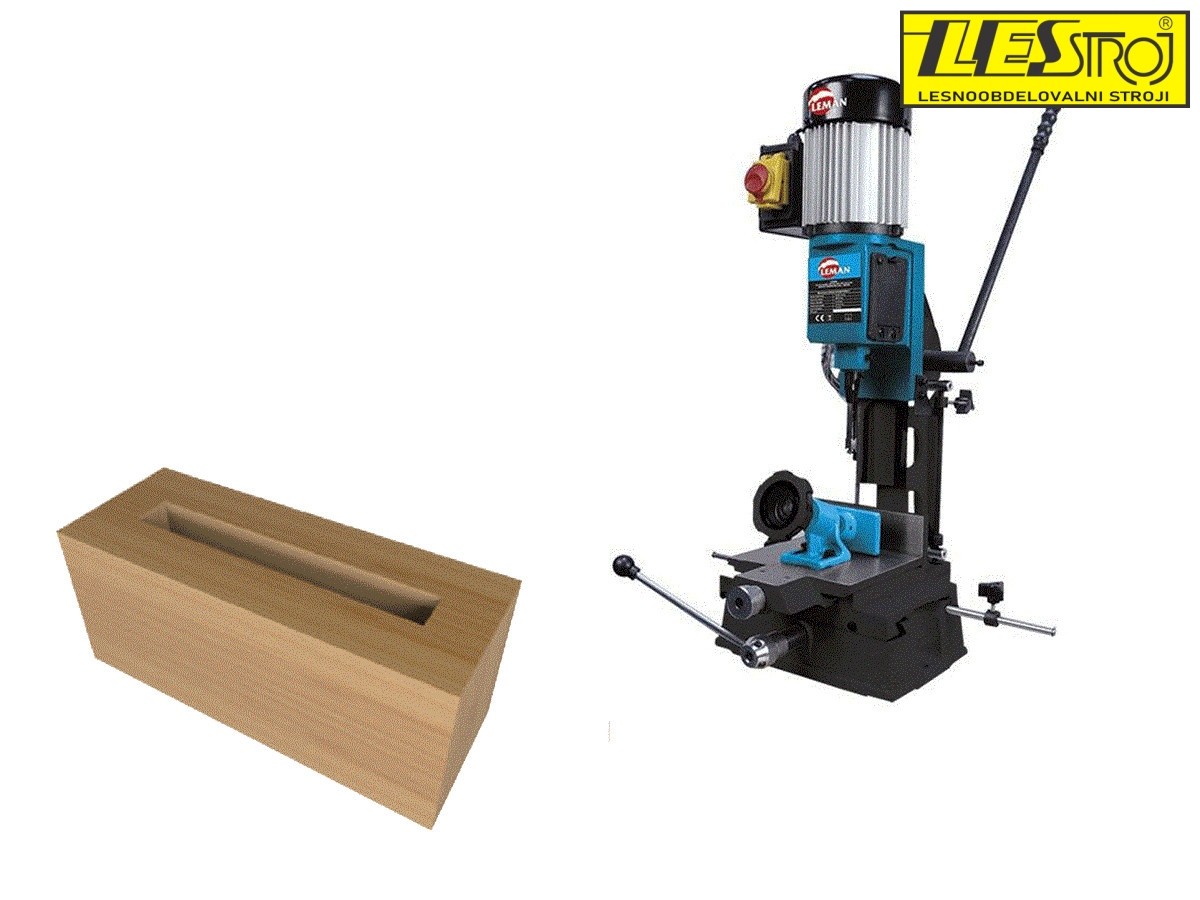

The drill bits for drilling 4-corner holes are intended for use with the LEMAN MOR750 or similar machine, as the machine must have a double chuck.
The drill consists of two parts:
- an external chisel that cleans the edges of the bore,
- a drill that cuts and cleans the bore.
Model | Diameter (D-mm) | Cutt. leng. (I-mm) | Tot. leng. (L-mm) | Shank dia. (S-mm) | Unit price | Buy | |
---|---|---|---|---|---|---|---|
LEMAN 306.510.60 | 10 | 60 | 140 | 15,9 |
– 10%
€11.25
|
![]() |
|
LEMAN 306.512.70 | 12 | 70 | 140 | 15,9 |
– 10%
€12.15
|
![]() |
|
LEMAN 306.514.75 | 14 | 75 | 140 | 15,9 |
– 10%
€14.31
|
![]() |
|
LEMAN 306.516.95 | 16 | 95 | 160 | 15,9 |
– 10%
€15.21
|
![]() |
|
LEMAN 306.518.95 | 18 | 95 | 160 | 15,9 |
– 10%
€32.31
|
![]() |
|
LEMAN 306.506.45 | 6 | 45 | 135 | 15,9 |
– 10%
€9.90
|
![]() |
