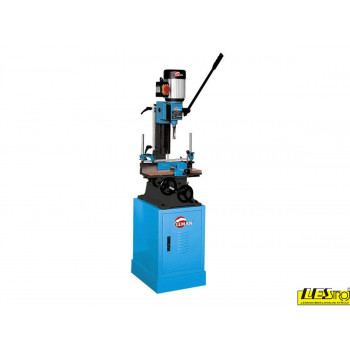

Hollow chisel mortiser LEMAN MOR750
The square chisel mortiser is intended for the easy production of 4-cornered (square) holes with the help of special drills. The machine is made entirely of metal and stands on a base that serves as a storage cabinet. The drill has a 750 W single-phase motor and the ability to make holes with a diameter of 6 to 19 mm.
The superior drilling machine for making square holes is an excellent accessory in every carpentry workshop where classic solid furniture is made.
The machine is very easy to use and is intended for drilling holes with a diameter of 6 to 19 mm.
The mortiser consists of two parts: the drill and the base for the drill, which serves as a storage cabinet.
The Leman MOR750 set contains:
- mortiser,
- base of the machine (storage cabinet),
- lever for moving the drill head,
- right lateral turning stop,
- 2x drill bits (8 and 10 mm).
Data sheet
- Motor power (kW)
- 0,75
- Drill rotation speed
- 2800 o/min
- Shank diameter (mm)
- 15,9 mm
- Bore diameter (mm)
- 6 - 16 mm
- Worktable dimension (mm)
- 400 x 150 mm
- Maximum workpiece width
- 195 mm
- Maximum carriage travel (mm)
- 170 mm
- Weight (kg)
- 125
- Machine external dimensions (LxWxH)
- 480 x 600 x 1790 mm
