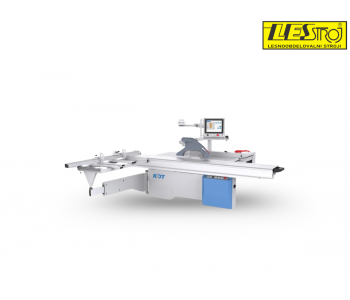

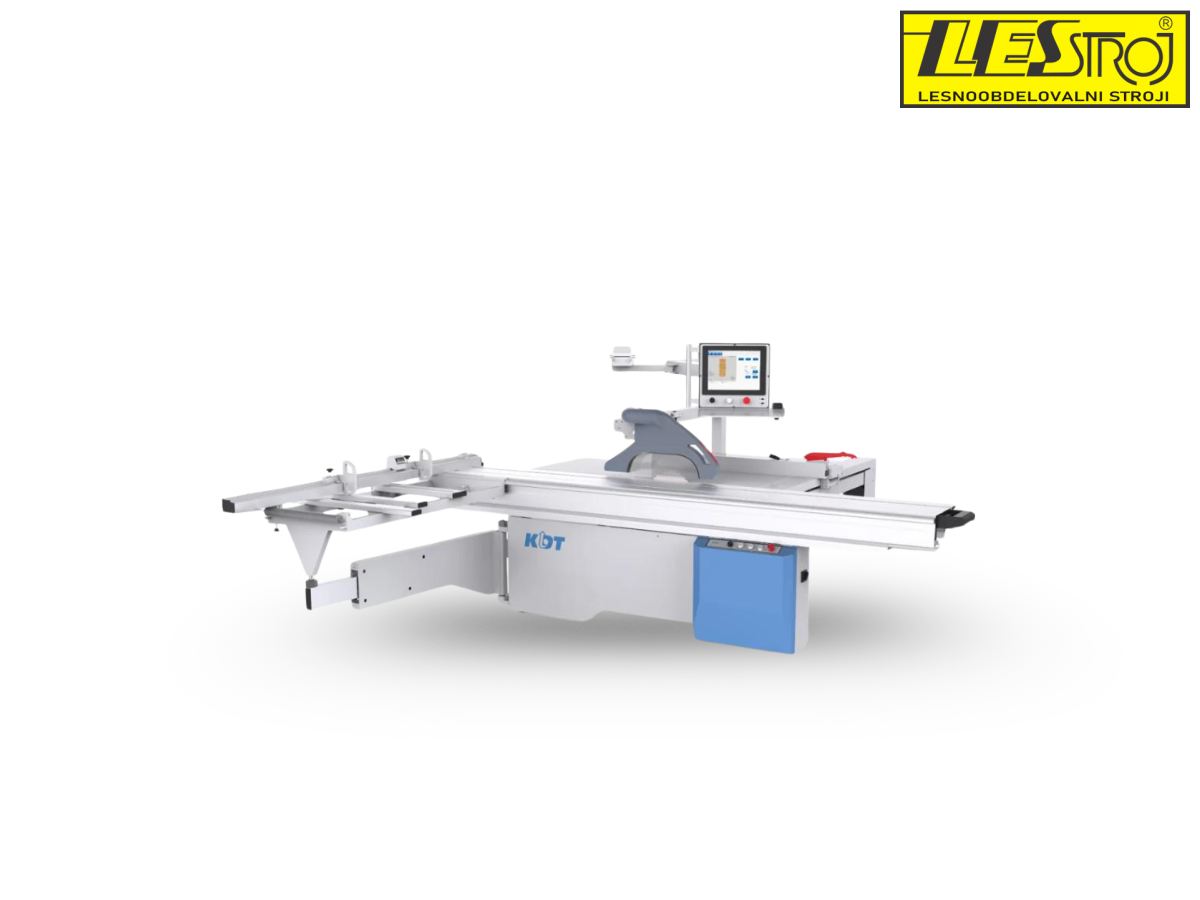

Sliding table saw KDT KS-132PV

Brand:

The high-performance panel saw KDT KS-132PV is an excellent choice for carpenters seeking a fully automated solution at an affordable price. This model is designed for use in demanding industrial environments where performance and precision are essential.

It is equipped with a powerful 7 kW motor, high-quality guides, a large 15-inch touchscreen, motorized saw blade lifting, and automatic movement of the right table.

In addition, it features electronic readouts for even greater accuracy and numerous other advanced functions that make work easier and faster.

Request for more information

Description
Product Details

Description

The KS-132PV model is an excellent solution for modern carpenters and industrial workshops that require high performance and reliability.

It is an industrial panel saw featuring three electronically adjustable axes – blade tilt, blade height, and right fence positioning – along with digital readout on the right fence. The machine is equipped with a computer and advanced KDT software, enabling precise control of the cutting process, cutting optimization, and automatic label printing with barcodes and all pre-defined information.

SPECIFICATIONS:

Possibility of integration with optimization software, allowing for programming of cutting sequences, label printing, and import of cutting plan files
Longitudinal fence with a servomotor for precise and fast adjustments
Two screens – main and auxiliary – enabling operation by a second operator as well
Digital counter on the cross stop for accurate positioning
Roller-guided sliding table, ensuring the highest cutting quality, no play during movement, and smooth, effortless gliding throughout the machine's lifetime;
Robust saw unit construction, which, thanks to the large amount of metal, significantly increases durability and minimizes vibrations
High-performance saw carriage made from an aluminum multi-chamber profile, with a working surface width of 430 mm
Independent electric motors for the scoring and main saw blades (1.1 kW / 5.5 kW), allowing for multi-shift operation and processing of various materials
Electric lifting and lowering of the main saw blade for easy operation
Transparent safety cover with dust extraction (CE certified), allowing visual monitoring of the cutting process and efficient removal of sawdust from the cutting area.

The machine also supports integration with commercial software such as MegaTISCHLER, Corpus 3D, IMOS, and others, allowing full integration into your existing workflow.
