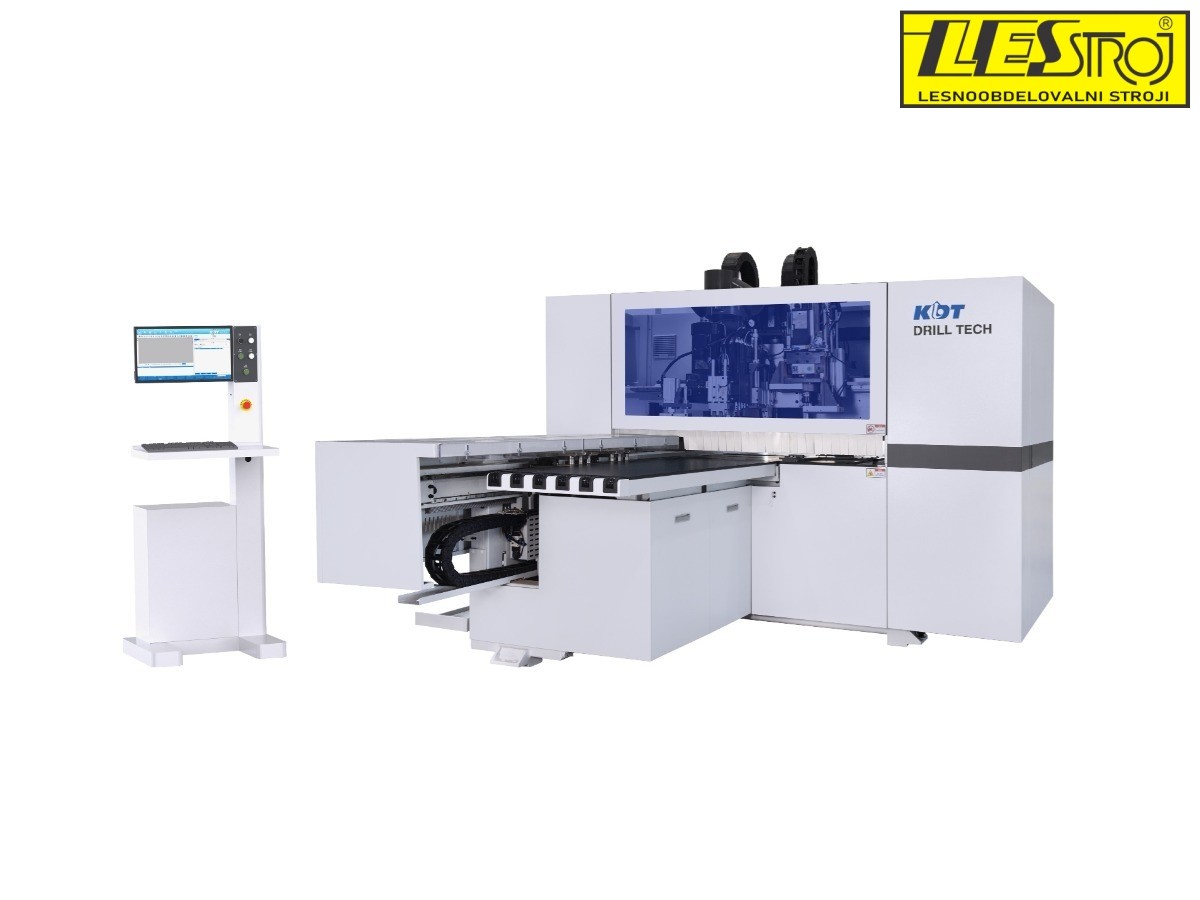

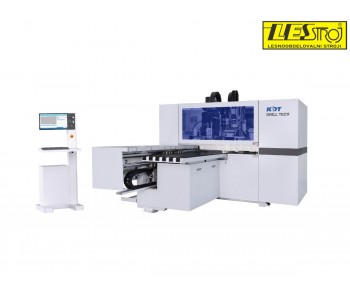

CNC Drilling Center KD-612KHS

CNC machine KD-612KHS is equipped with a powerful CNC unit, high-quality guides, and an intuitive user interface, which allows for easy programming and operation. KD-612KHS seamlessly connects with various software-supported solutions for production planning and optimization.

KD-612KHS offers numerous advanced features that ensure high efficiency, precision, and flexibility in modern furniture production. It allows connection with optimization programs, including the use of drilling plans and label printing, which greatly simplifies the workflow.

The machine achieves exceptionally fast processing with speeds of up to 140 m/min along the X-axis, 90 m/min along the Y-axis, and 50 m/min along the Z-axis. It also includes a grooving unit with a 120 mm diameter saw blade and a standard milling unit. It allows for drilling from all six sides of the workpiece, including a double addition for small parts with dimensions from 70 × 35 mm onwards.

For smooth operation, the machine ensures automatic lubrication of guides during movement along the X and Y axes. Parts can be automatically ejected forward or backward, depending on the configuration, and it also includes an automatic unloading table. The visualization of processing with a double addition allows for better control over the process, while the batch drilling function further increases productivity. A barcode scanner is also integrated for reading additions.

This machine stands out with its top-notch design, allowing for reliable, fast, and precise processing, even with more demanding tasks.

SPECIFICATIONS:

• Workpiece length: 70–2800 mm

• Workpiece width: 35–1200 mm

• Workpiece thickness: up to 60 mm

• Gripper feed speed along the X-axis: up to 140 m/min

• Maximum speed along the Y-axis: 90 m/min

• Maximum speed along the Z-axis: 50 m/min

• Number of drilling groups: 3

• Number of vertical spindles (upper group): 26

• Number of vertical spindles (lower group): 9

• Number of horizontal spindles: 12

• Milling unit power: 1 × 5.5 kW + 1 × 3.5 kW

• Grooving unit (saw blade): 120 × 20 × 4 mm

• Diameter of suction tubes: 2 × 100 mm + 2 × 200 mm

• Total connected power: 28.2 kW

• Operating pressure: 0.6 MPa

• Machine dimensions (L × W × H): 6040 × 3140 × 2190 mm

• Machine weight: 4000 kg
