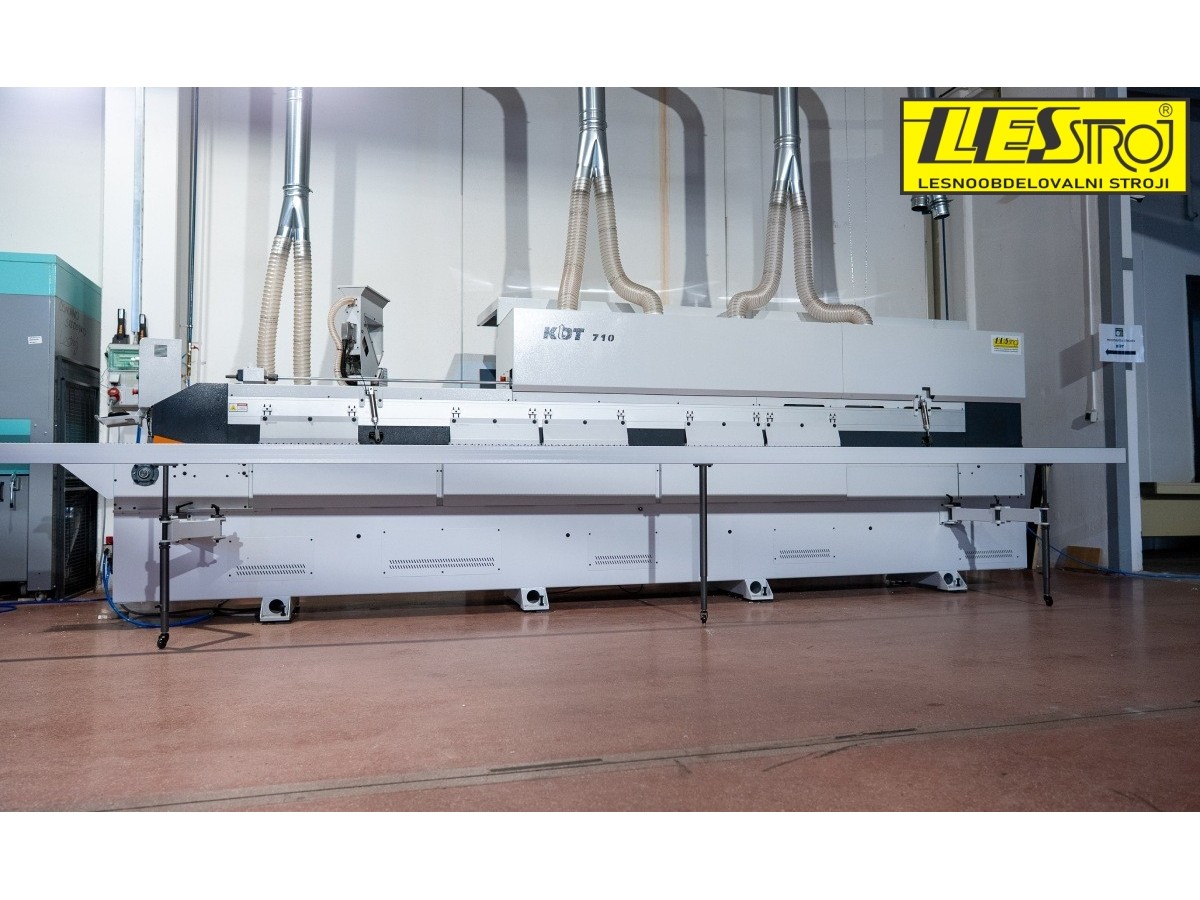

Edge bender KE-706BT / 710BT
Brand:

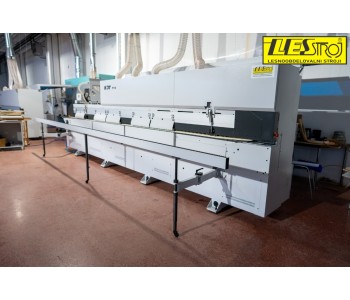

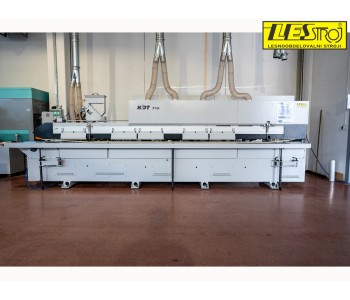

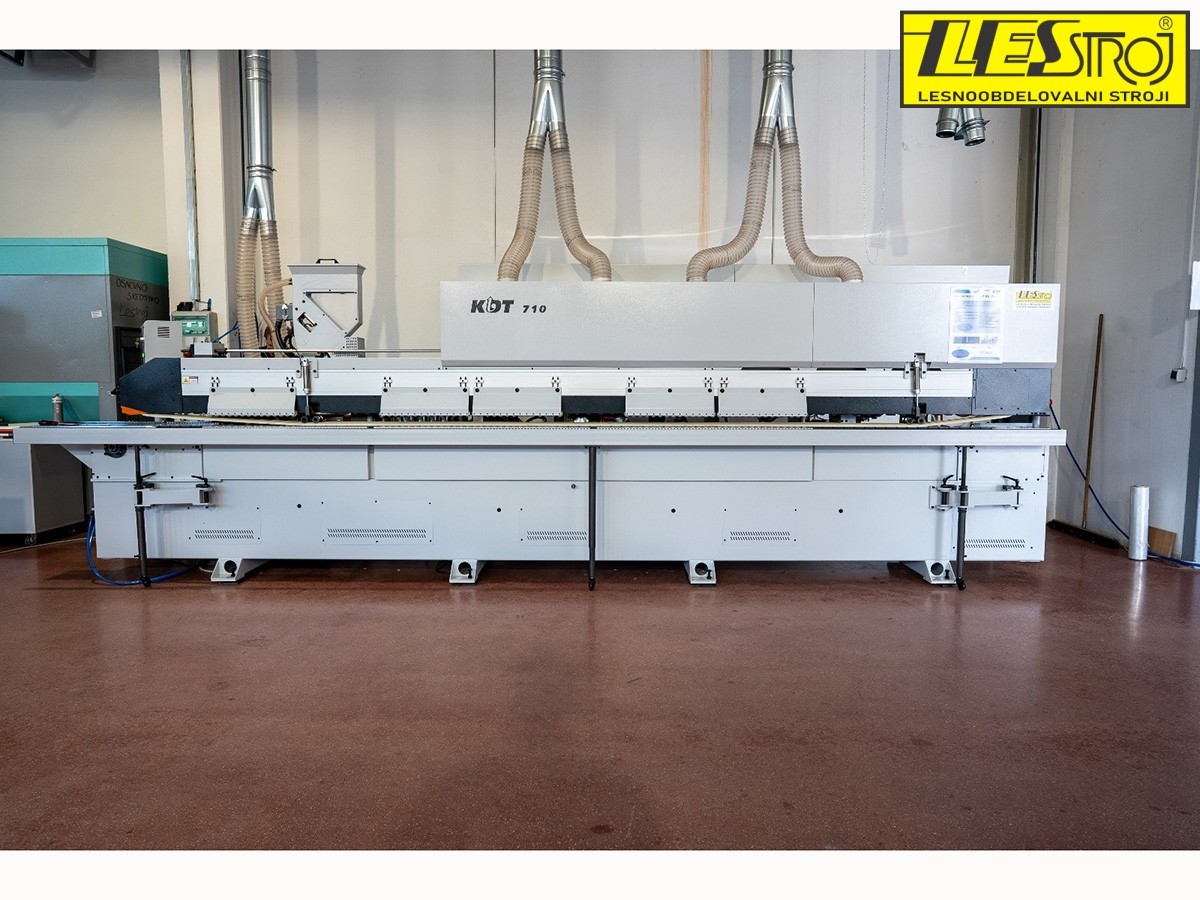

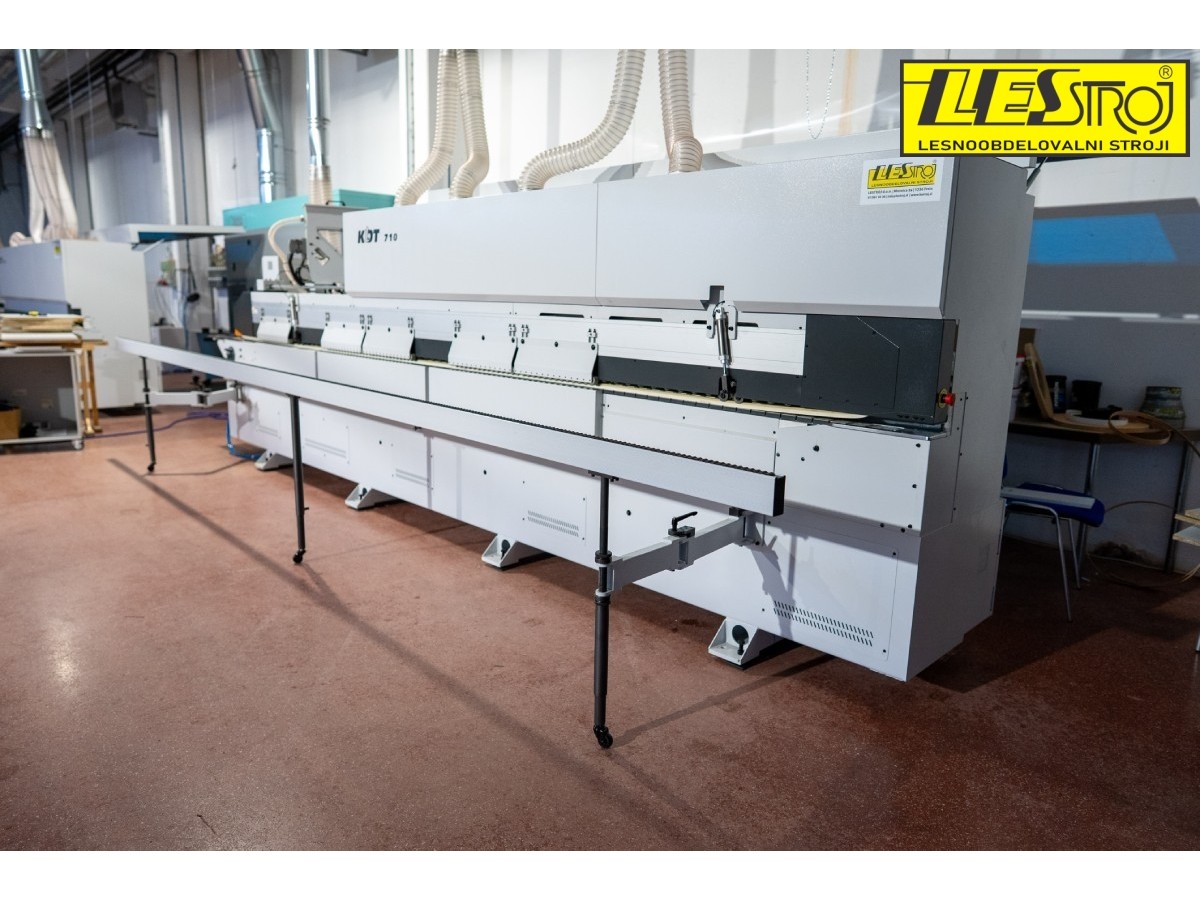

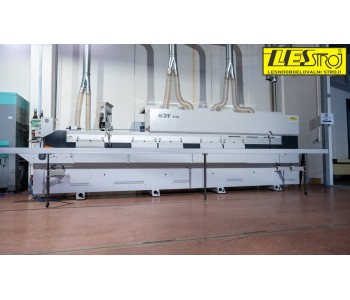

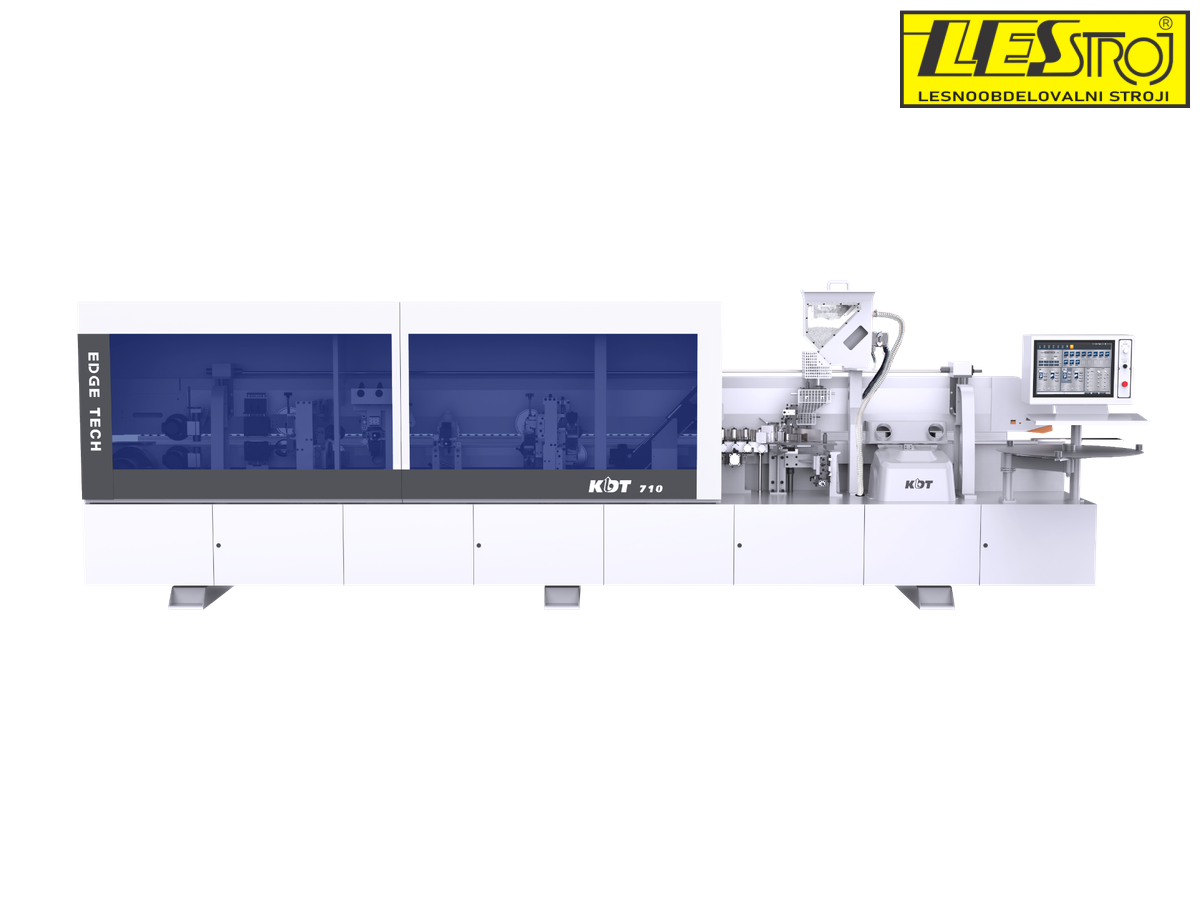

The KDT KE-706BT/710BT edge banding machine is a top-tier solution for the professional processing of straight edges on furniture panels with synthetic edge banding. Designed for continuous 24-hour operation, it enables processing of up to 3,500–4,000 linear meters per shift, ensuring exceptional productivity.

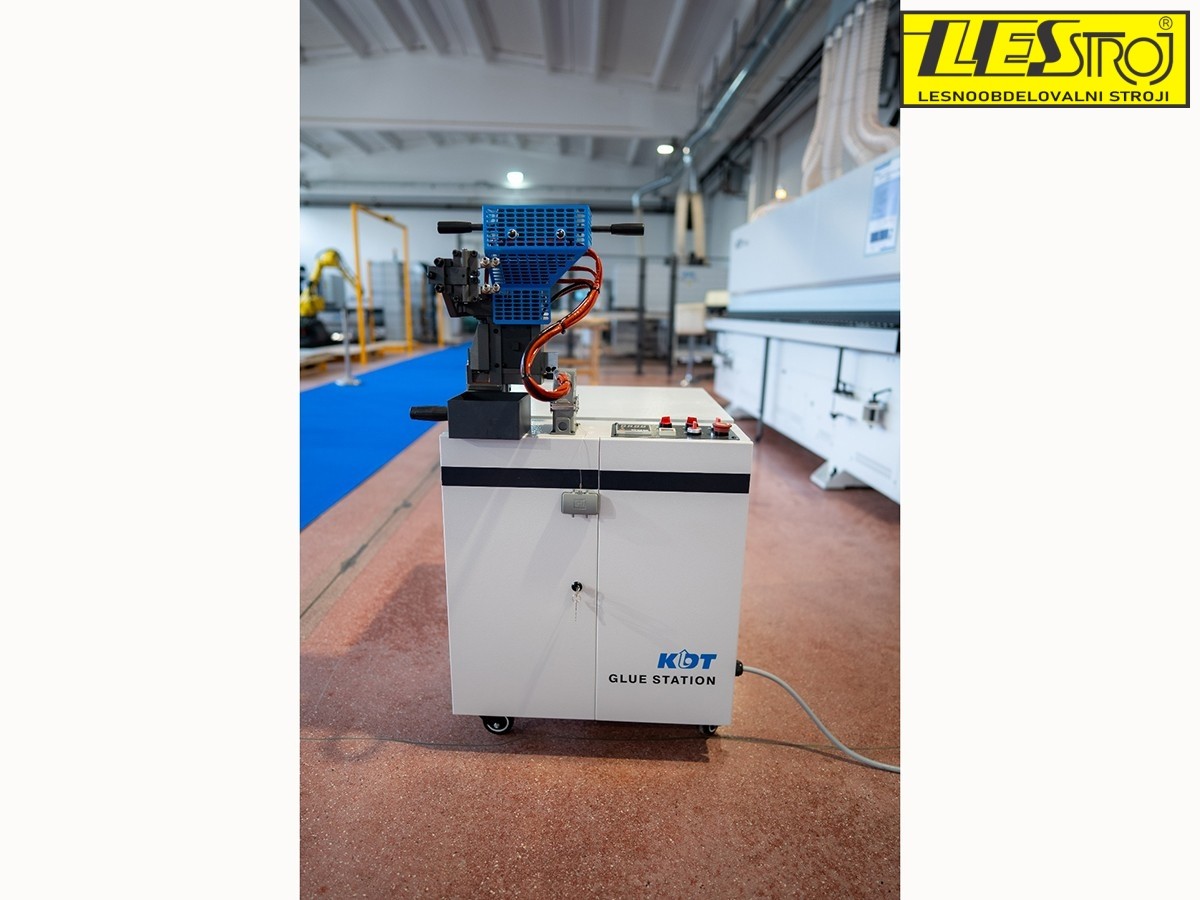

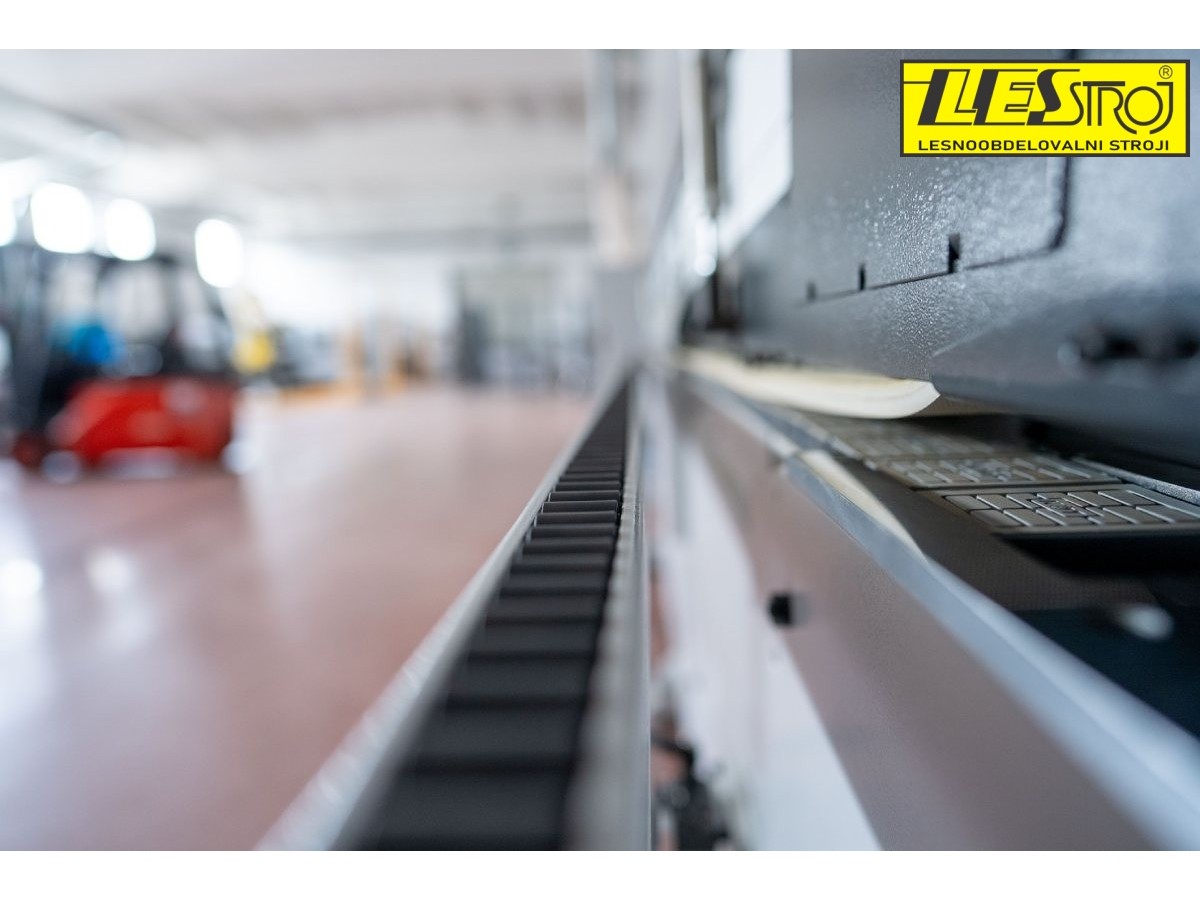

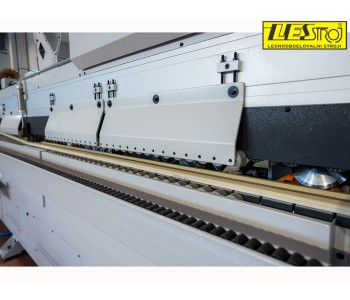

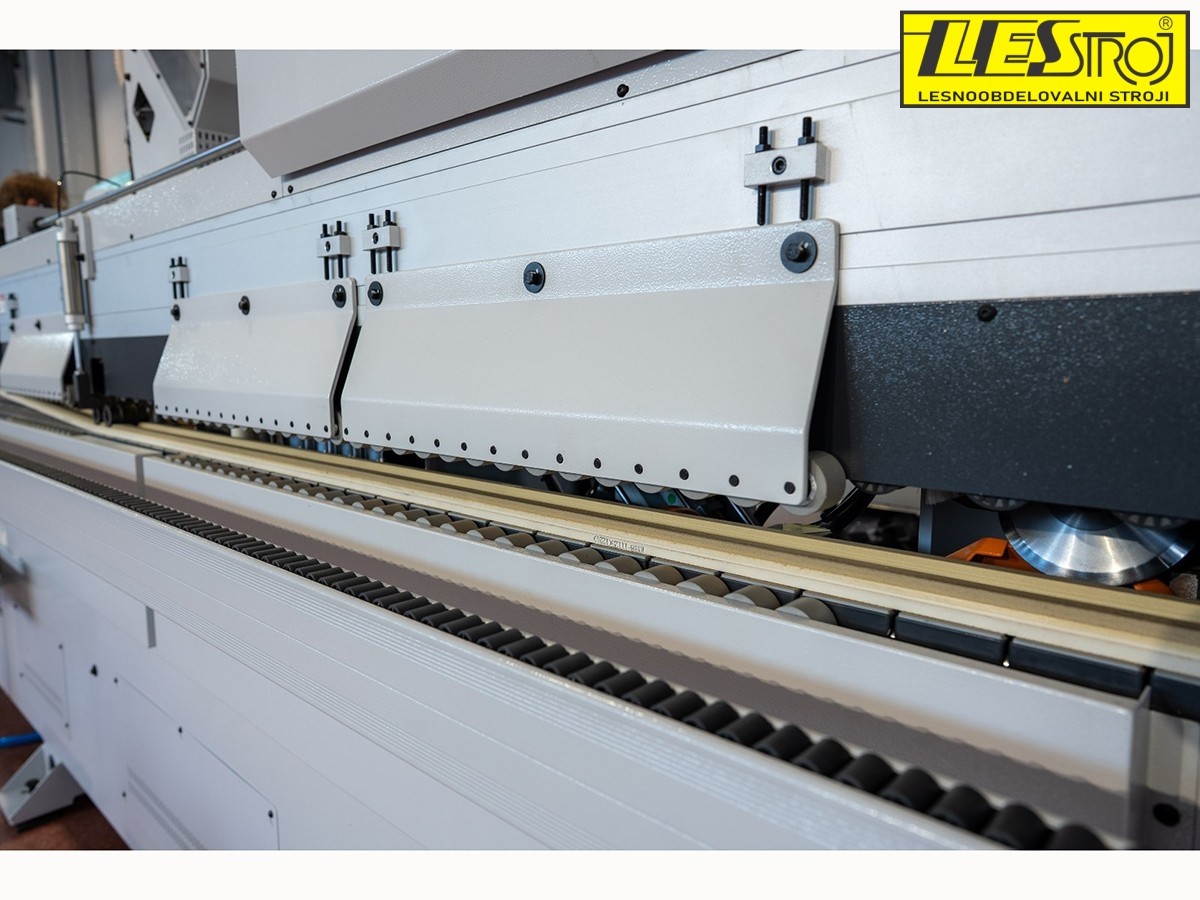

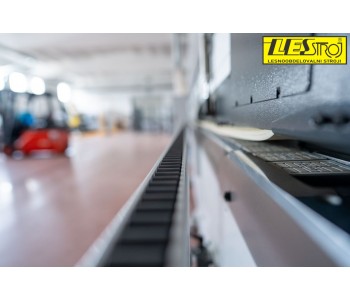

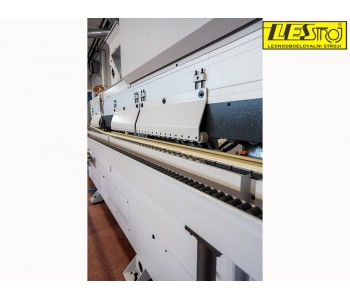

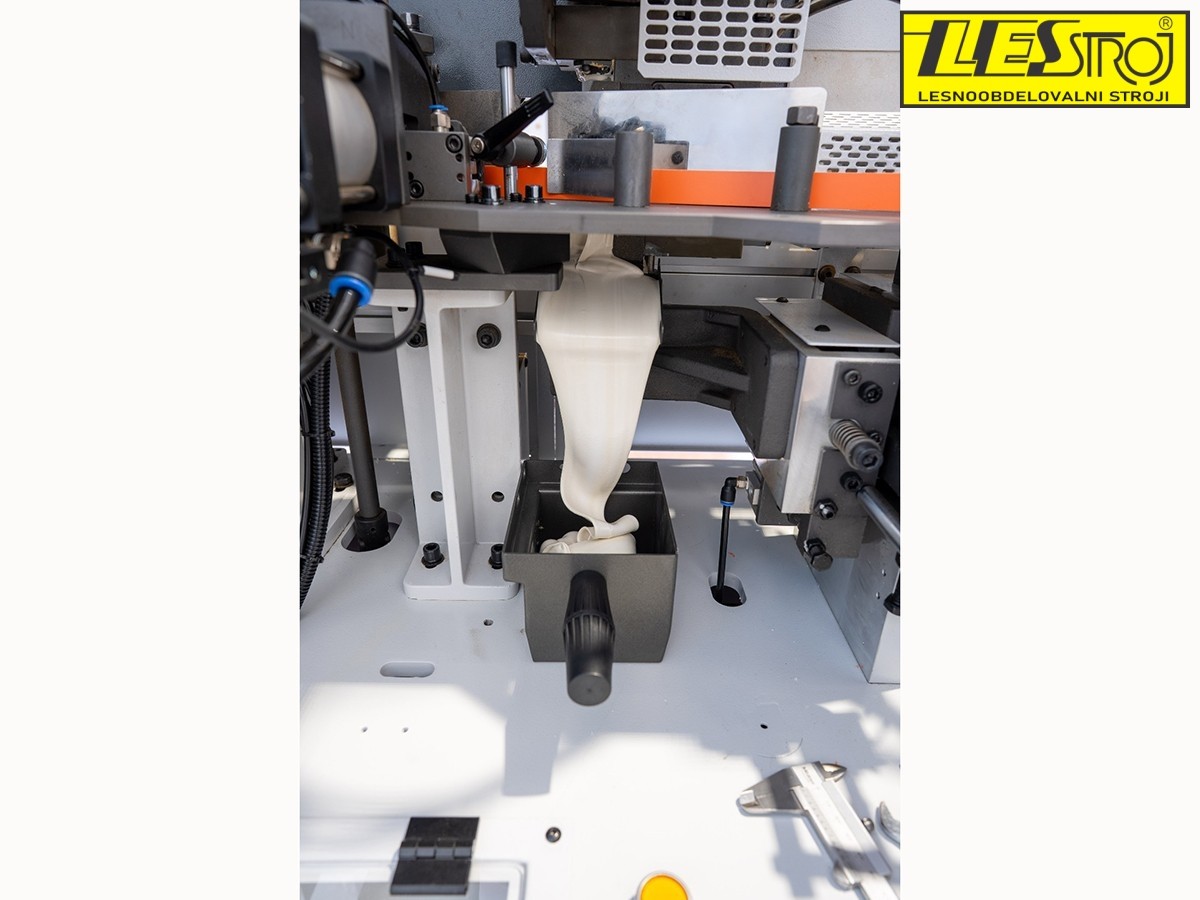

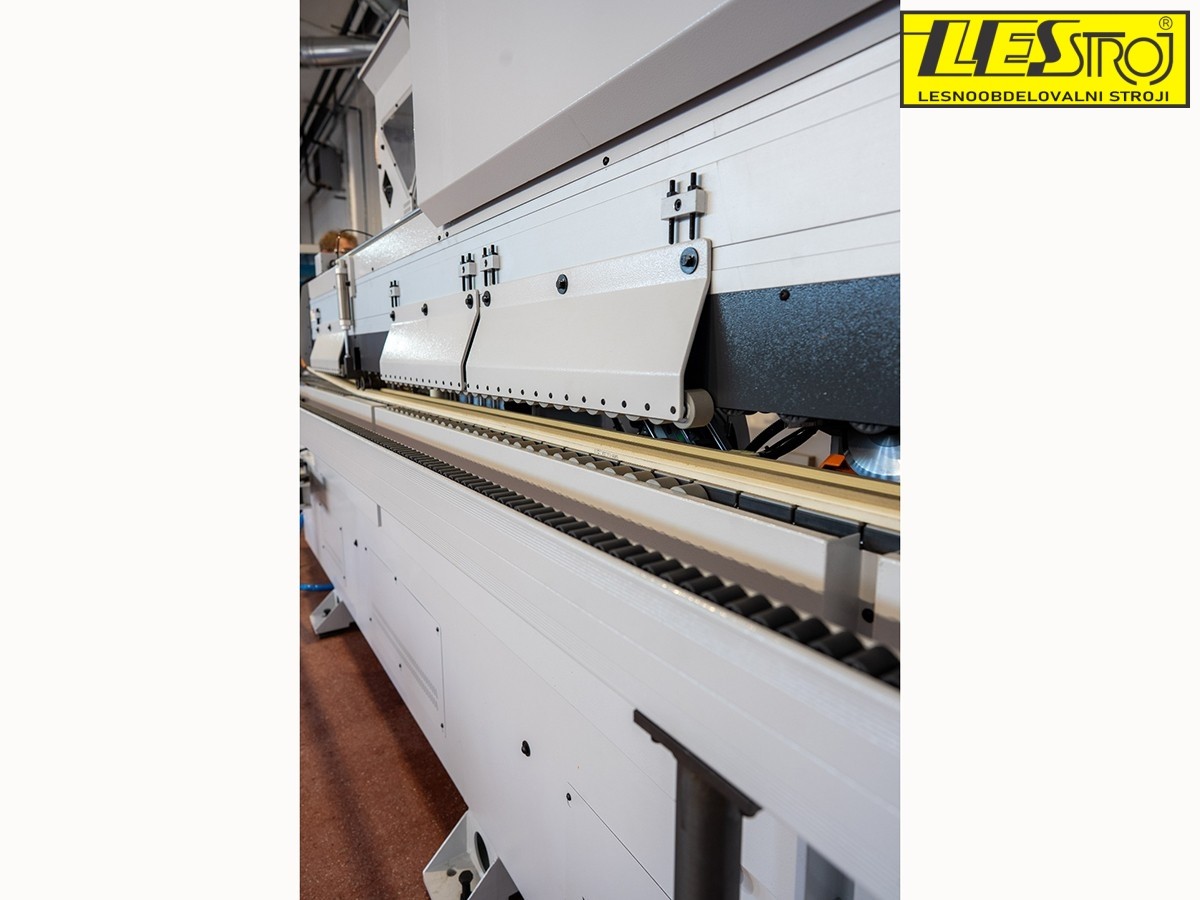

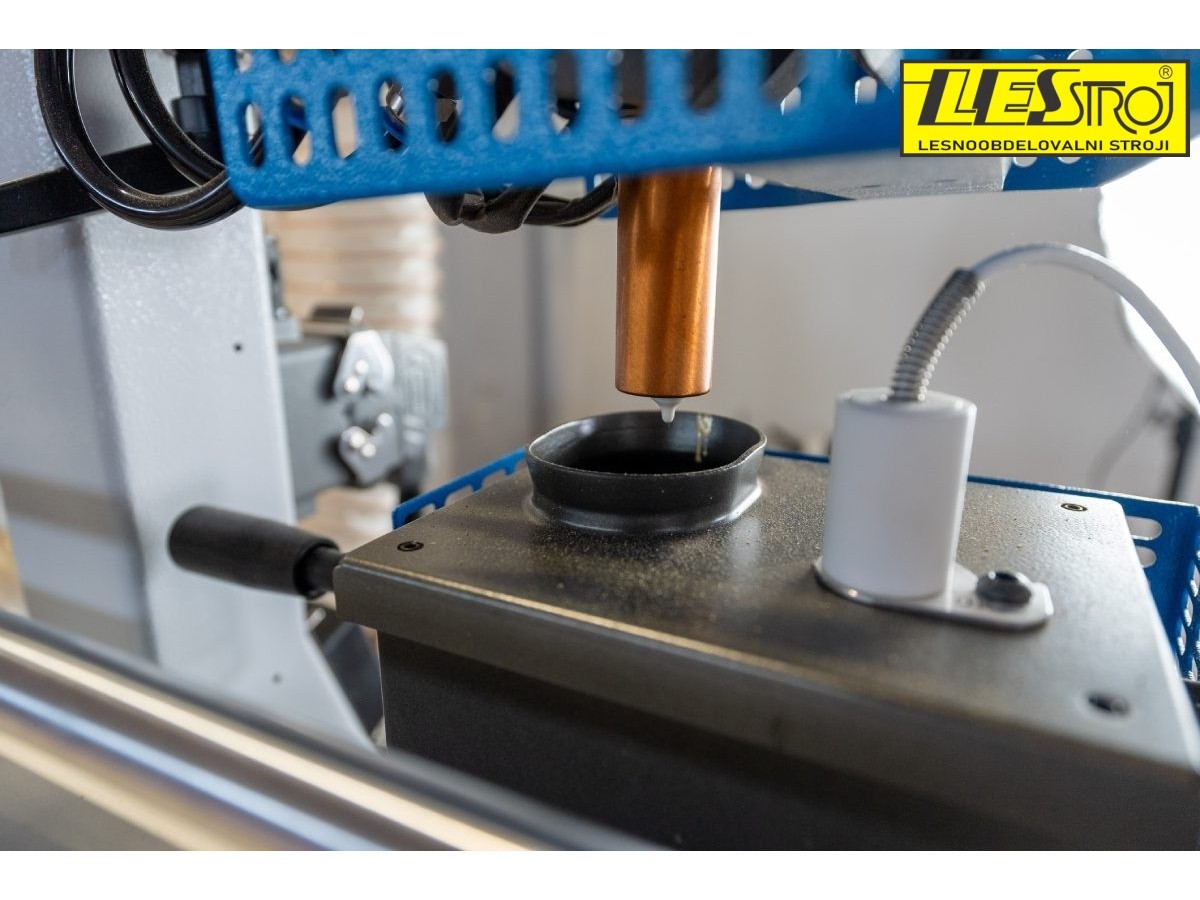

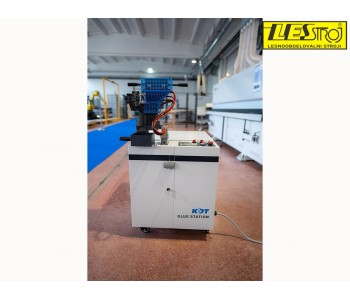

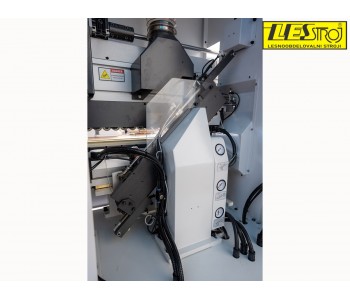

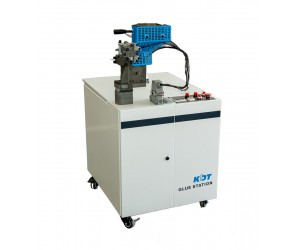

The KE-706BT/710BT is equipped with an advanced upper glue pot system with a pre-melt and automatic pneumatic feeding of granulated glue from a special hopper. For reliable transport of workpieces, the machine features an upper belt conveyor.
Servomotors enable fast and precise adjustment of the milling and scraping units directly from the control panel. The machine is equipped with two motors for corner rounding and allows continuous 24-hour operation, with a capacity of 3,500–4,000 linear meters per shift. Its high feed speed of up to 24 m/min ensures exceptional productivity.
Key Features of the edge bender KE-706BT / 710BT

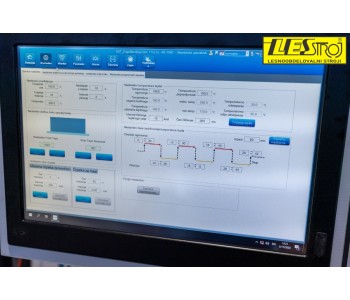

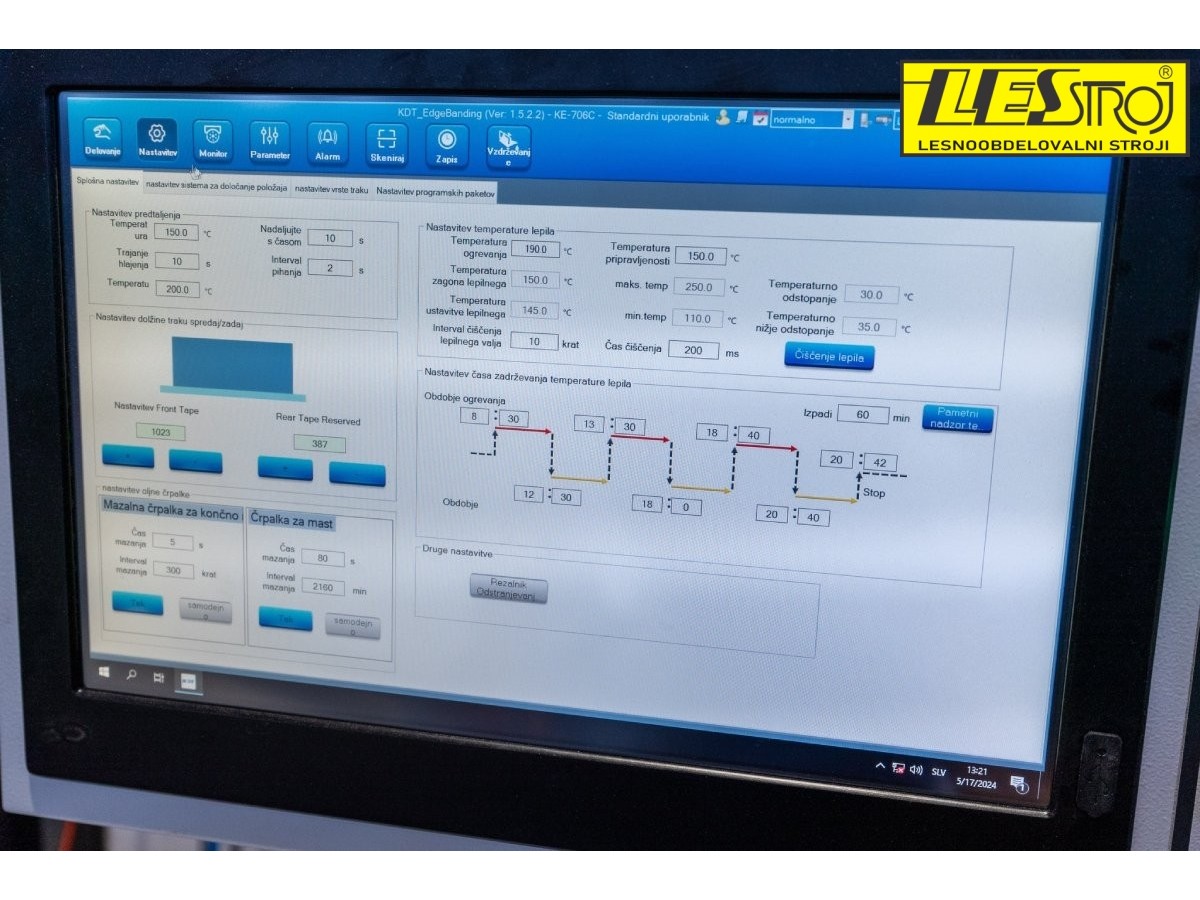

- Touch screen control via an industrial computer

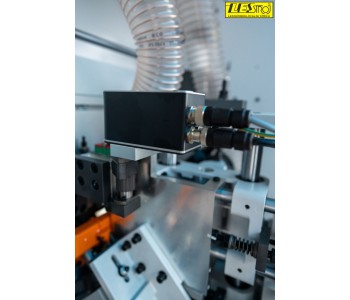

- Non-contact monitoring of processing units using built-in sensors
- Ability to program technological breaks for enhanced efficiency
- Individual frequency converters for each working unit for adaptable operation

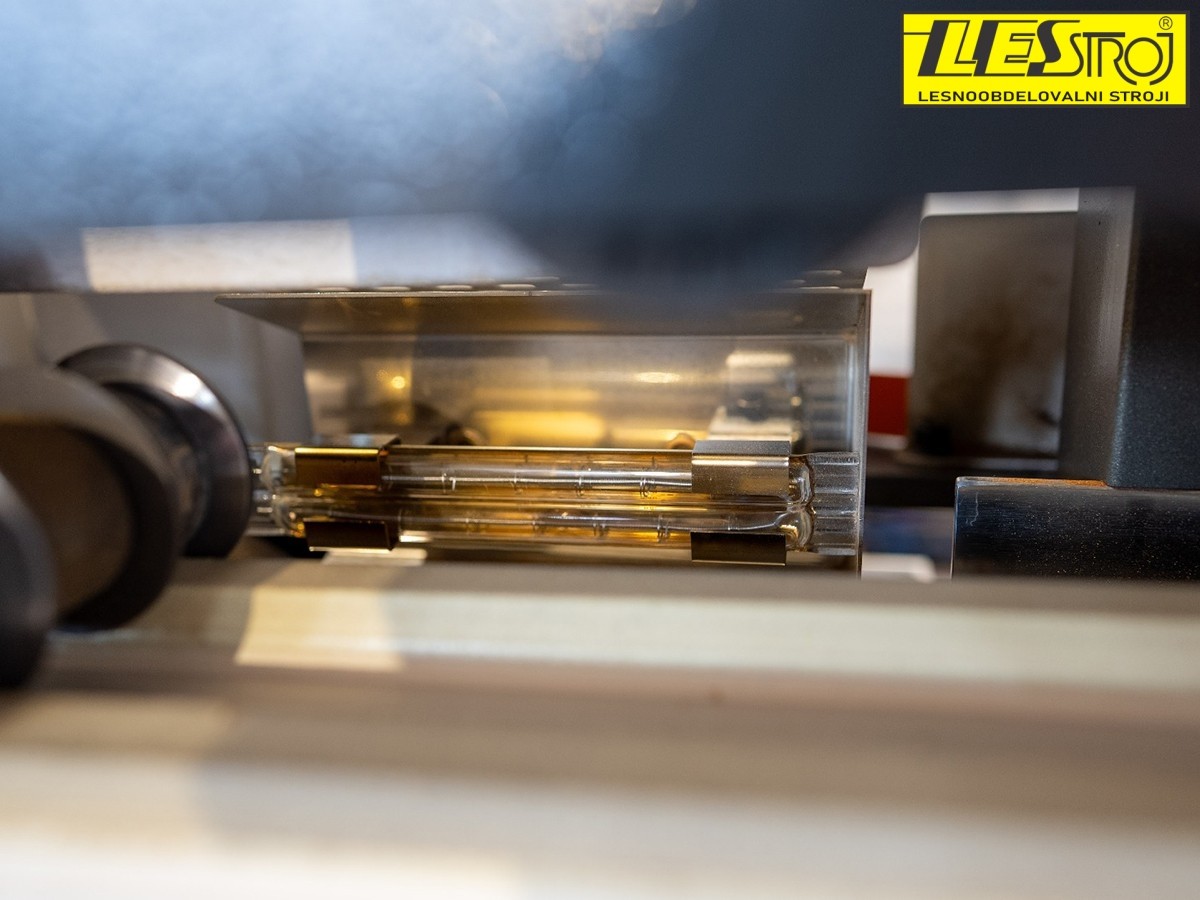

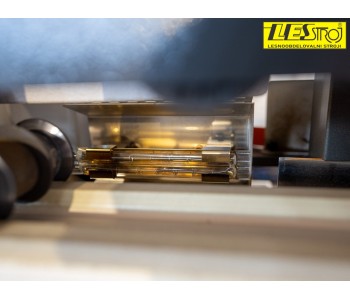

- Preheating lamp for warming up the edge of the workpiece before gluing
- Cabin lighting for better visibility
- End switches on cabin doors for added safety
- Pneumatic closing system on the glue roller to prevent contamination
- Adjustment of front and rear overhangs directly from the control panel
- CE-compliant design meeting EU standards

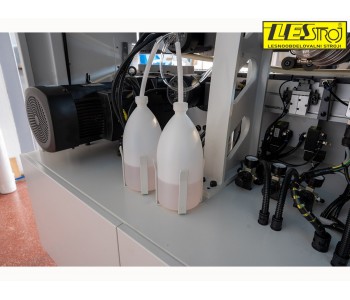

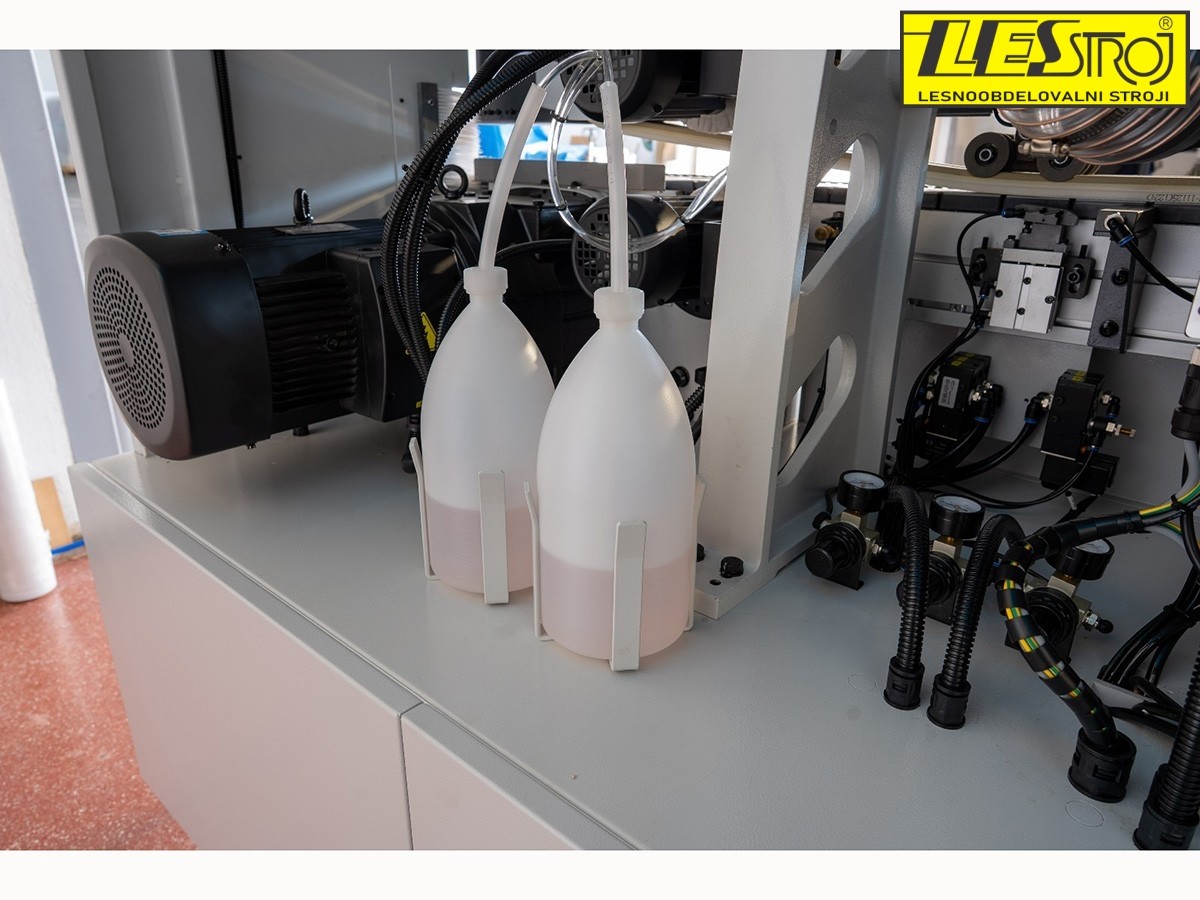

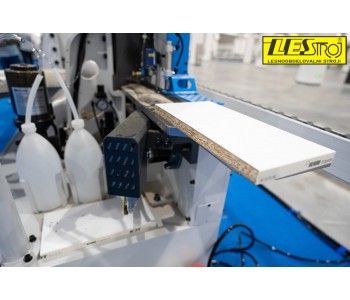

Liquid Application Units of edge bender KE-706BT / 710BT:
- Separator liquid:
- 2 nozzles before the pre-milling unit
- Polishing liquid:Prevents glue contact with the workpiece
- 2 nozzles before the polishing unit
- Removes residue from the separator liquid and glueEnsures a clean, glossy edge finish
Specifications of edge bender KE-706BT / 710BT:
- Feed speed: 15–24 m/min

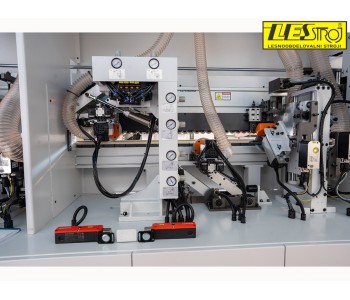

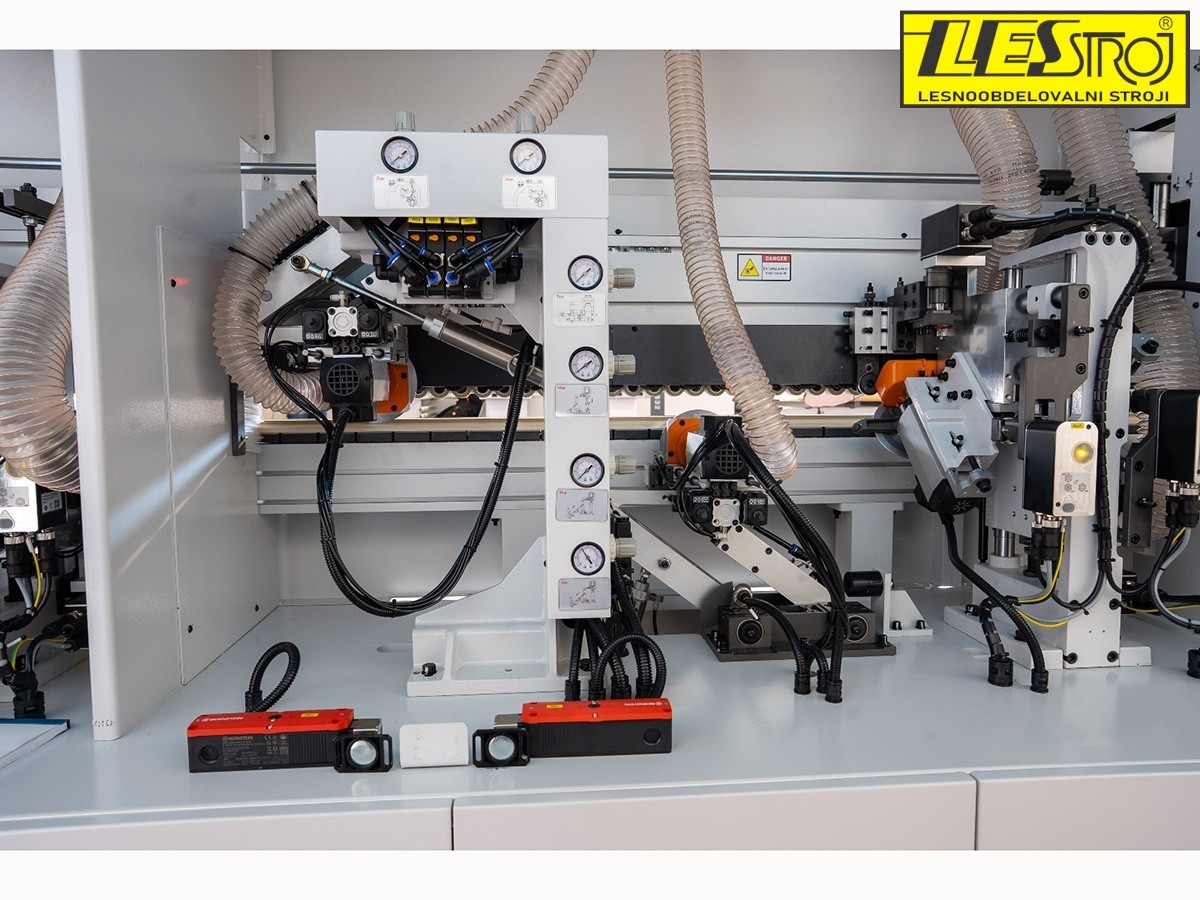

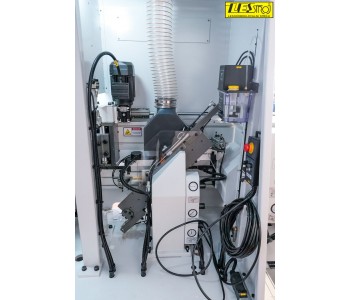

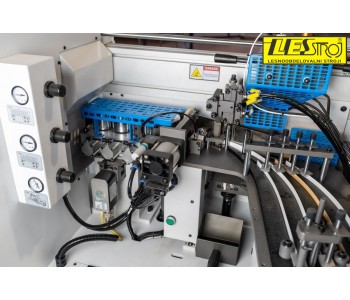

- Machine units:
- Jointing unit
- Clamping unit
- Facing unit

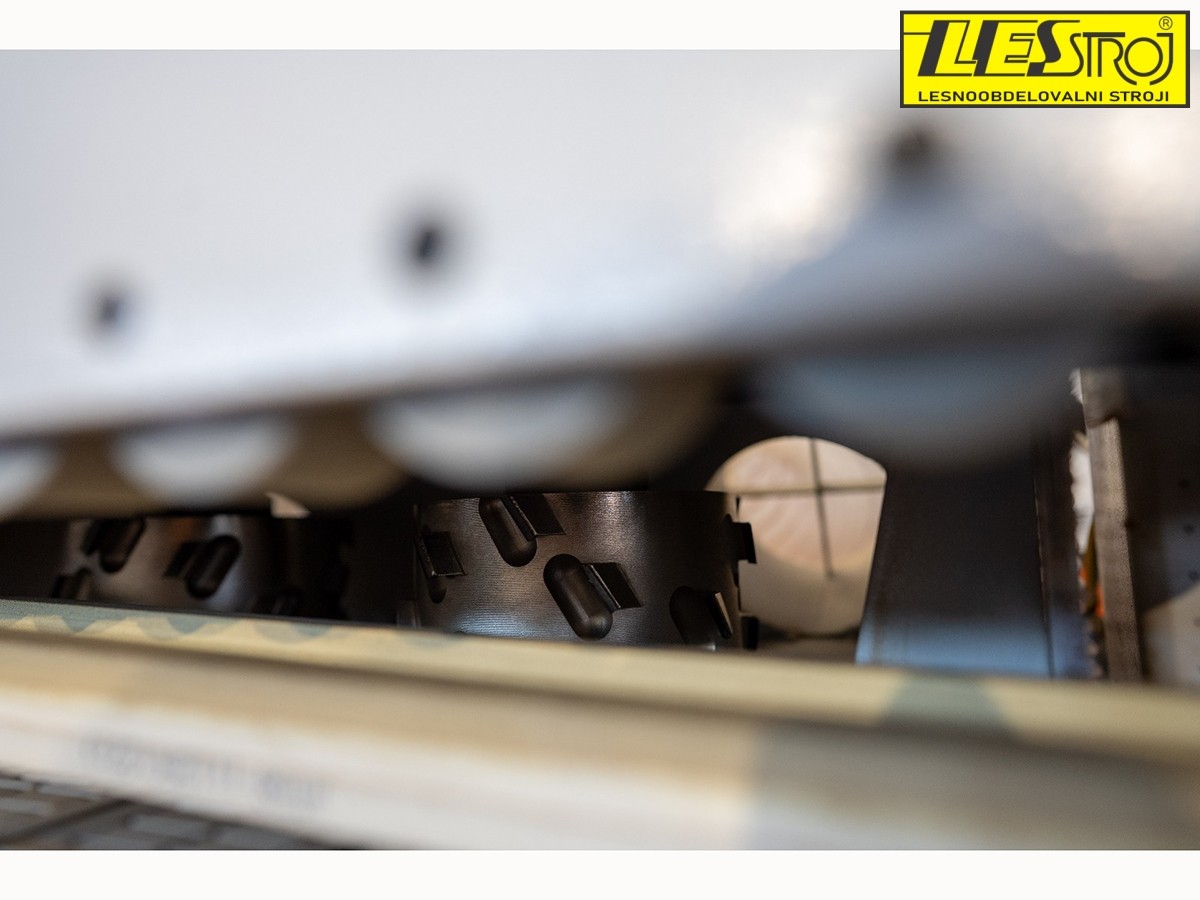

- Milling unit for removing overhangs

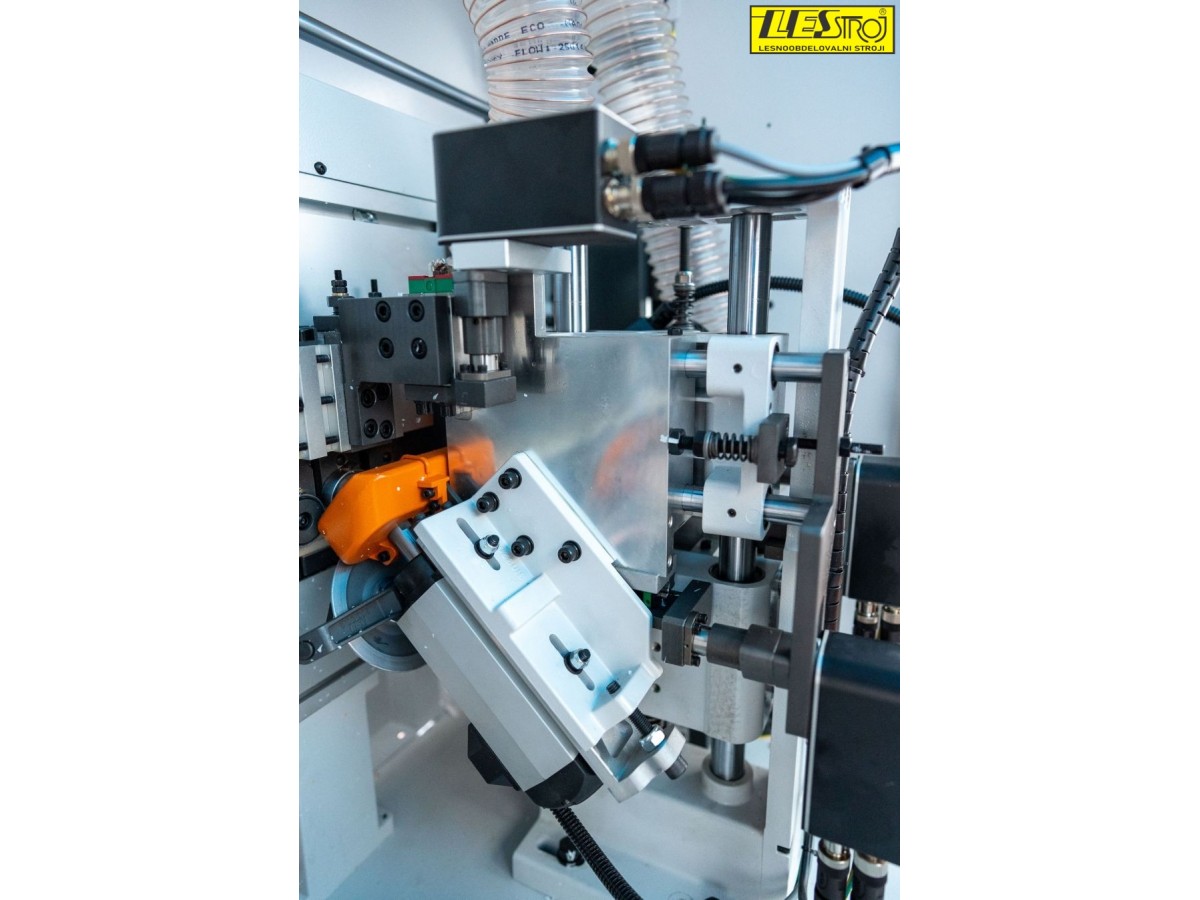

- Contouring unit (rounding)
- Scraping unit with radius knives
- Scraping unit with straight knives
- Polishing unit
- Minimum workpiece size: 120 x 95 mm
- Edge thickness: 0.4–3 mm
- Workpiece thickness: 10–60 mm
- Minimum workpiece width: ≥ 95 mm
- Minimum workpiece length: ≥ 120 mm
- Total power: 21 kW

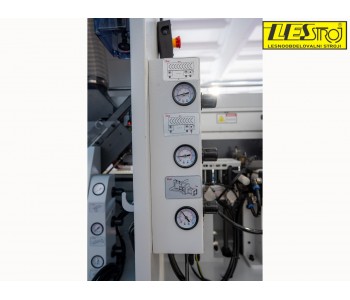

- Working pressure: 0.6 MPa
- Machine dimensions (L x W x H): 6200 x 940 x 1960 mm
- Machine weight: 2600 kg
