Panel saw SCM SI 400 CLASS

Name: Formatna Žaga SCM SI400 Class
Brand: SCM Group

Brand:

SCM Group

Request for more information

Condition

New product

Description

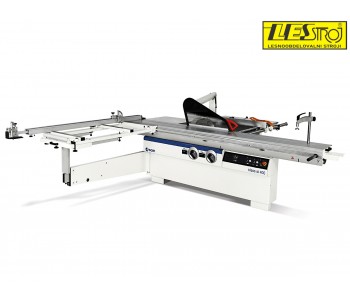

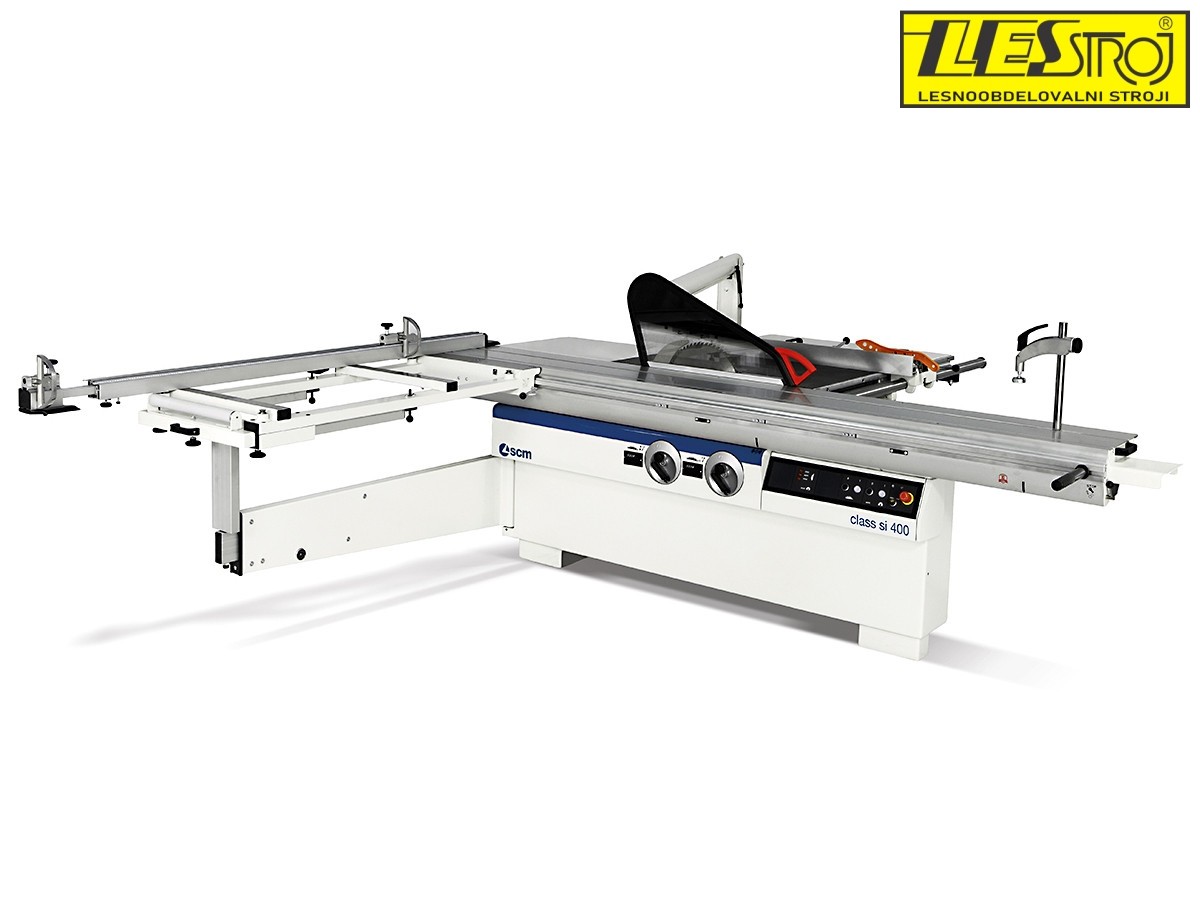

Panel Saw SCM SI 400 CLASS

Class series panel saws are a high class machines from SCM. Manual or programmed editions are available, both with 400mm blade diameter.

You can't go wrong with SI 400 Class series. High cutting quality, thanks to arch-steel guides in sliding table structure. High torsional rigidity makes the machine vibration free!

Automatic version with ''Ready'' software that is very simple to control, but efective!

Manual version with high-respons handwheels and numeric indicators.

Product Details

Data sheet

Saw carriage length: 3200 ali 3800

Saw blade diameter (mm): 400

Pre-cutter blade rotation speed: 8500

Pre-cutter - engine power: 0,9

Scoring saw blade (mm): 120

Motor power (kW): 7

Saw rotation speed (rpm): 3000 / 4000 / 5000

Max. cut-out at 90°/45°: 140 / 97

Machine Version: Mehanska

Attachments

DIMENZIJE STROJA

Download (255.81k)

KATALOG SCM SI 350 CLASS

Download (3.26M)

Images

Voz serije CLASS - 4x VEČJA NOSILNOST -

Sistem voza SCM na serijah Class in Linvincibile se je v praksi pokazal kot najbolj zanesljiv in natančen skozi leta uporabe. "Bombirana" vodila omogočajo večjo naležno povšino, obenem pa še vedno dovolj "zračna" in tako manj občutljiva na prah ali slabše pogoje dela.

Žagna enota serije CLASS - Izjemno robustna monolitna...

Vertikalni pomik na krogličnih vodilih zagotavljajo gladek tek in natančne nastavitve. Monolitna (iz enega kosa) žagna enota zagotavlja močno stabilnost in preprečuje vibracije.BREZ MAZANJA IN VZDRŽEVANJA. NEOBČUTLJIVO NA PRAH!
