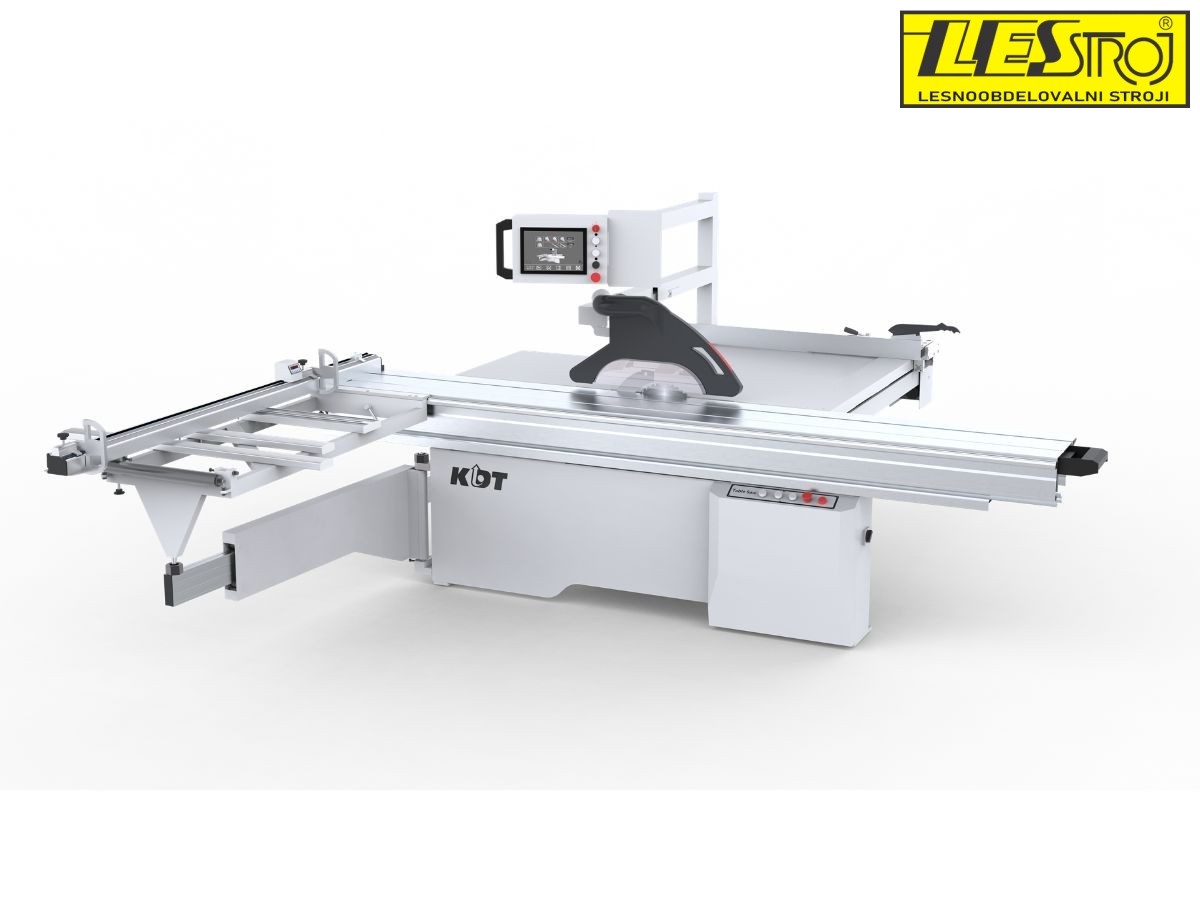

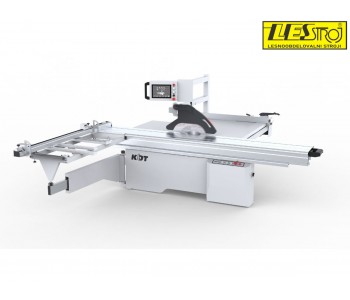

Sliding Table Saw KDT KS-132K
High-quality panel saw by KDT manufacturer. An automated panel saw at a very affordable price, designed for all carpenters.
With a powerful 7 kW motor, automatic movement of the right carriage, touchscreen display, motorized saw blade lift, high-quality guides, electronic readouts, and other features, this saw is suitable for use in industrial plants.
The panel saw features a digital readout on the right guide and electronically adjustable controlled 3 axes (saw blade lift, right guide, saw blade tilt). By using a computer and software, it offers fast and convenient adjustments with the option to save settings in the program.

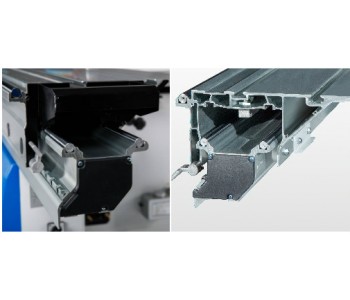

The roller carriage ensures the highest cutting quality, as well as smoothness and ease of movement throughout the machine's entire lifespan.

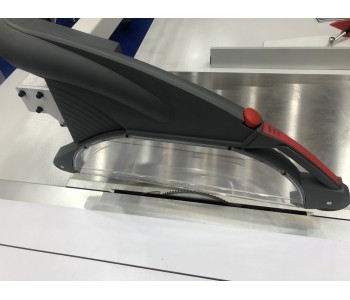

Thanks to the transparent CE dust extraction covers, the cutting process and the efficiency of sawdust removal from the working area can be visually monitored.
Technical Specifications and Machine Equipment
- Touchscreen display for electronic machine control (saw blade tilt, height, right guide position)
- Carriage length: 3200 mm, Carriage width: 430 mm
- Maximum circular saw blade diameter: 350 mm
- Saw blade tilt: up to 45°
- Electronically adjustable saw blade height and tilt
- Main motor power: 7 kW - S6
- Scoring blade motor power: 0.9 kW - S6
- Cutting capacity to the right guide: 1250 mm, electronically adjustable
- Industrial guides for the right guide – endless screw + servo motor for movement
- Protective cover console
- Cross telescopic guide with two limiters (1x digital readout)
- Dust extraction port: 120 mm
- Manual hydraulic pump for lubricating prismatic guides on the saw unit
- Dimensions: 3350 x 3450 x 1510 mm
- Weight: 1000 kg
- CE certification
Data sheet
- Saw carriage length
- 3200
- Max. saw blade diameter (mm)
- 350
- Saw blade tilting (°)
- 45
- Main engine power
- 7
- Pre-cutter - engine power
- 0,9
- Cut-out width on the right guide frame
- 1250
- Extraction outlet diameter (mm)
- 120
- Overall machine dimensions (mm)
- 3350x3450x1510
- Weight (kg)
- 1000
