Straight router bits with interchangeable blades
The straight HW router bit with interchangeable blades is used both on hand-held router machines and CNC machines.
The CMT straight router bit with interchangeable HW blades with an additional blade from the lower side is an ideal solution for use on hand-held router machines and CNC machines for making grooves with different diameters in various types of materials, such as soft or hard solid wood, wood composites, laminates and plastics.
The additional lower blade contributes to easier, cleaner entry of the router bit perpendicular to the material. Since the blades are interchangeable, it is suitable for the users who do not have time to sharpen the router bits, and ensures a constant diameter all the time.
You can choose between the router bit diameters ranging from 8 to 20 mm with 8 or 12 mm shank.

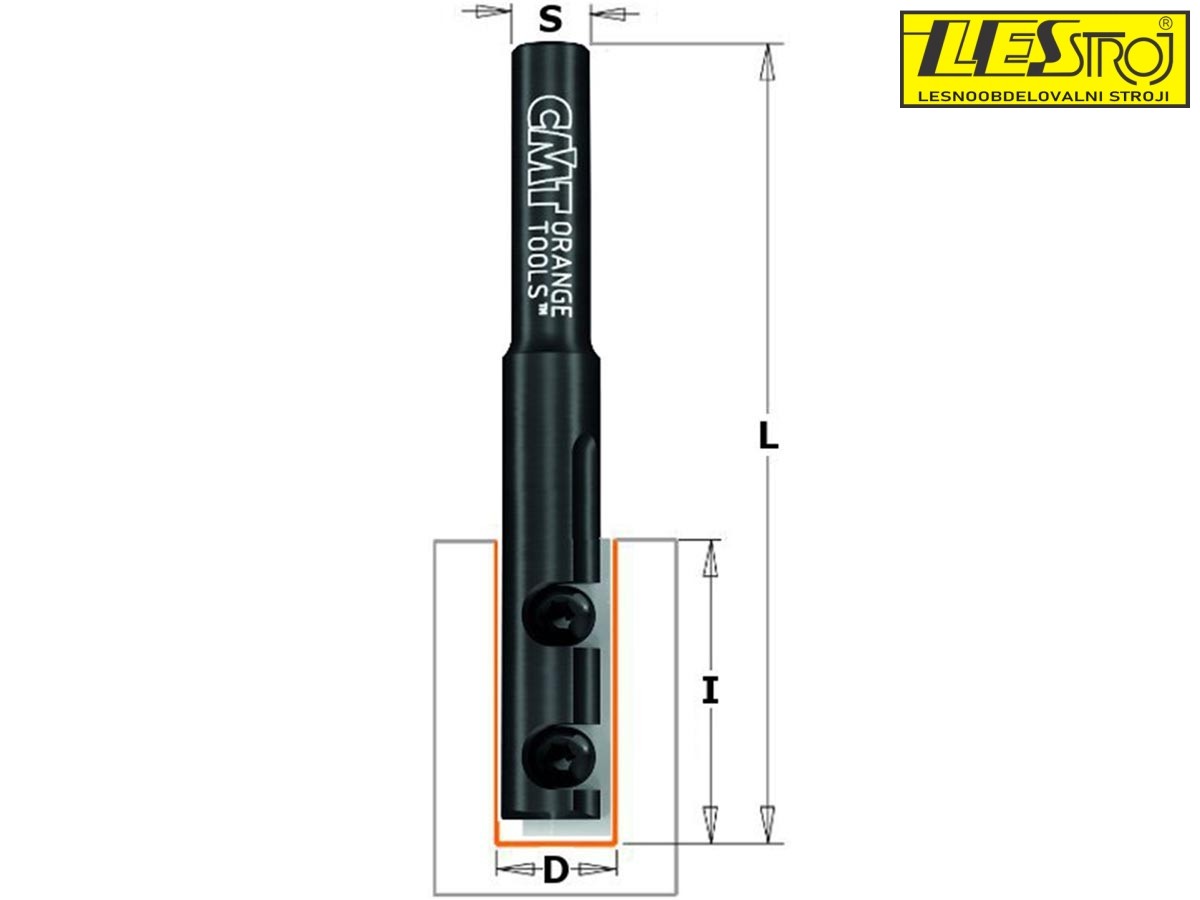

Model | Diameter (D-mm) | Cutt. leng. (I-mm) | Tot. leng. (L-mm) | Shank dia. (S-mm) | Unit price | Buy | |
---|---|---|---|---|---|---|---|
651.100.11 | 10 | 30 | 70 | 8 |
– 5%
€70.87
|
||
651.101.11 | 10 | 30 | 80 | 12 |
– 5%
€73.44
|
||
651.120.11 | 12 | 30 | 70 | 8 |
– 5%
€78.66
|
||
651.121.11 | 12 | 30 | 80 | 12 |
– 5%
€78.66
|
||
652.120.11 | 12 | 29,5 | 79 | 8 |
– 5%
€59.47
|
||
652.121.11 | 12 | 50 | 103 | 12 |
– 5%
€90.73
|
||
652.122.11 | 12 | 39,5 | 90 | 8 |
– 5%
€63.55
|
||
652.628.11 | 12,7 | 50 | 103 | 12,7 |
– 5%
€90.73
|
Call us
|
|
653.158.11 | 15,8 | 28,3 | 92 | 12,7 |
– 5%
€85.03
|
Call us
|
|
653.162.11 | 16 | 48,3 | 111,5 | 12 |
– 5%
€103.07
|
||
654.162.11 | 16 | 48,3 | 105 | 12 |
– 5%
€103.93
|
||
653.662.11 | 16 | 48,3 | 111,5 | 20 |
– 5%
€97.00
|
||
653.160.11 | 16 | 28,3 | 82 | 8 |
– 5%
€85.03
|
||
653.161.11 | 16 | 28,3 | 92 | 12 |
– 5%
€85.03
|
||
654.662.11 | 16 | 48,3 | 105 | 20 |
– 5%
€103.93
|
Call us
|
|
654.161.11 | 16 | 28,3 | 87 | 12 |
– 5%
€92.34
|
||
654.160.11 | 16 | 28,3 | 76 | 8 |
– 5%
€92.34
|
Call us
|
|
653.681.11 | 18 | 48,3 | 111,5 | 20 |
– 5%
€98.32
|
||
655.190.11 | 19 | 12 | 45 | 8 |
– 5%
€50.26
|
||
653.701.11 | 20 | 48,3 | 111,5 | 20 |
– 5%
€102.32
|
||
651.081.11 | 8 | 20 | 67 | 12 |
– 5%
€76.10
|
||
651.080.11 | 8 | 20 | 60 | 8 |
– 5%
€70.87
|
