Stile and panel router bits 970

Stile and panel router bits 970

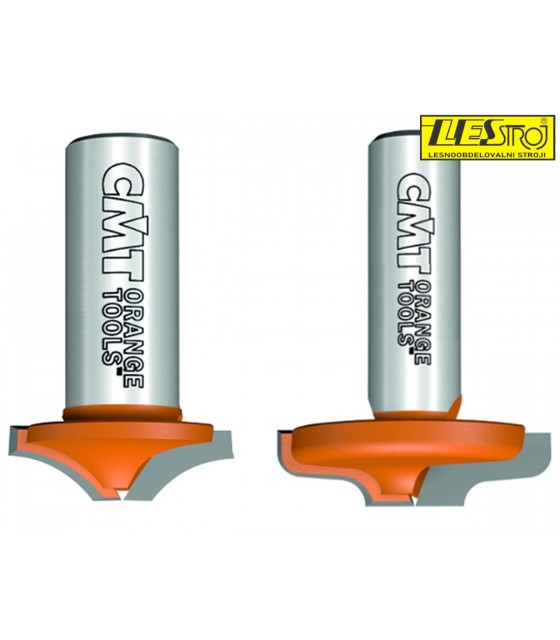

The plunge ogee bit with HW blades is used for making decorative cutouts.

Limited time offer:
€33.63 €35.40 -5%

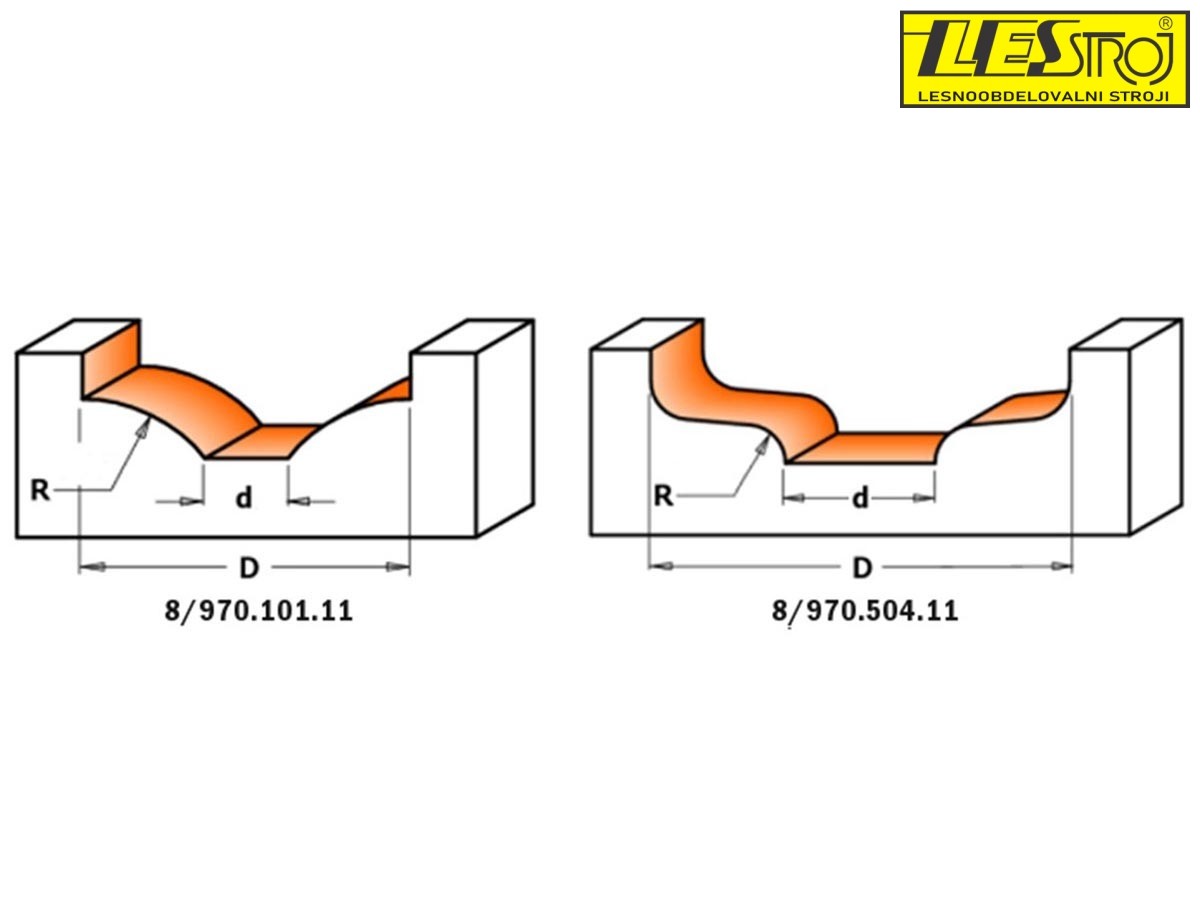

Radius (R-mm)
Diameter (D-mm)
Cutt. leng. (I-mm)
Shank dia. (S-mm)
Tot. leng. (L-mm)
Diameter 1 (d-mm)
Last items in stock
Reference:
007104
Description

The double-faced cutter HW router bit with decorative profile has a special coating for better removal of the cut material and less adhesion to the blade.

It is used on hand-held router machines and CNC machines. The plunge ogee bit for making decorative cutouts is suitable for treatment of various materials, such as soft or hard solid wood, wood composites, laminates and plastics.

Product Details
007104

Specific References

Other product combination
Model Diameter 1 (d-mm) Diameter (D-mm) Radius (R-mm) Cutt. leng. (I-mm) Tot. leng. (L-mm) Shank dia. (S-mm) Unit price Buy
970.504.11 12,5 35 3,2 9,5 47,6 12
€42.60
– 5%
€40.47
Call us
970.505.11 13,3 35 3,2 8 46 12
€42.60
– 5%
€40.47
Call us
970.101.11 6 25 12 8 39,8 8
€35.40
– 5%
€33.63
