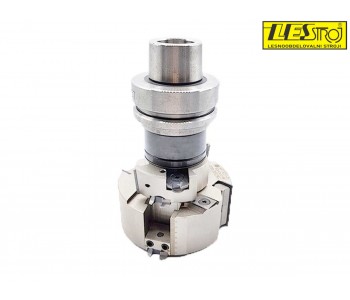

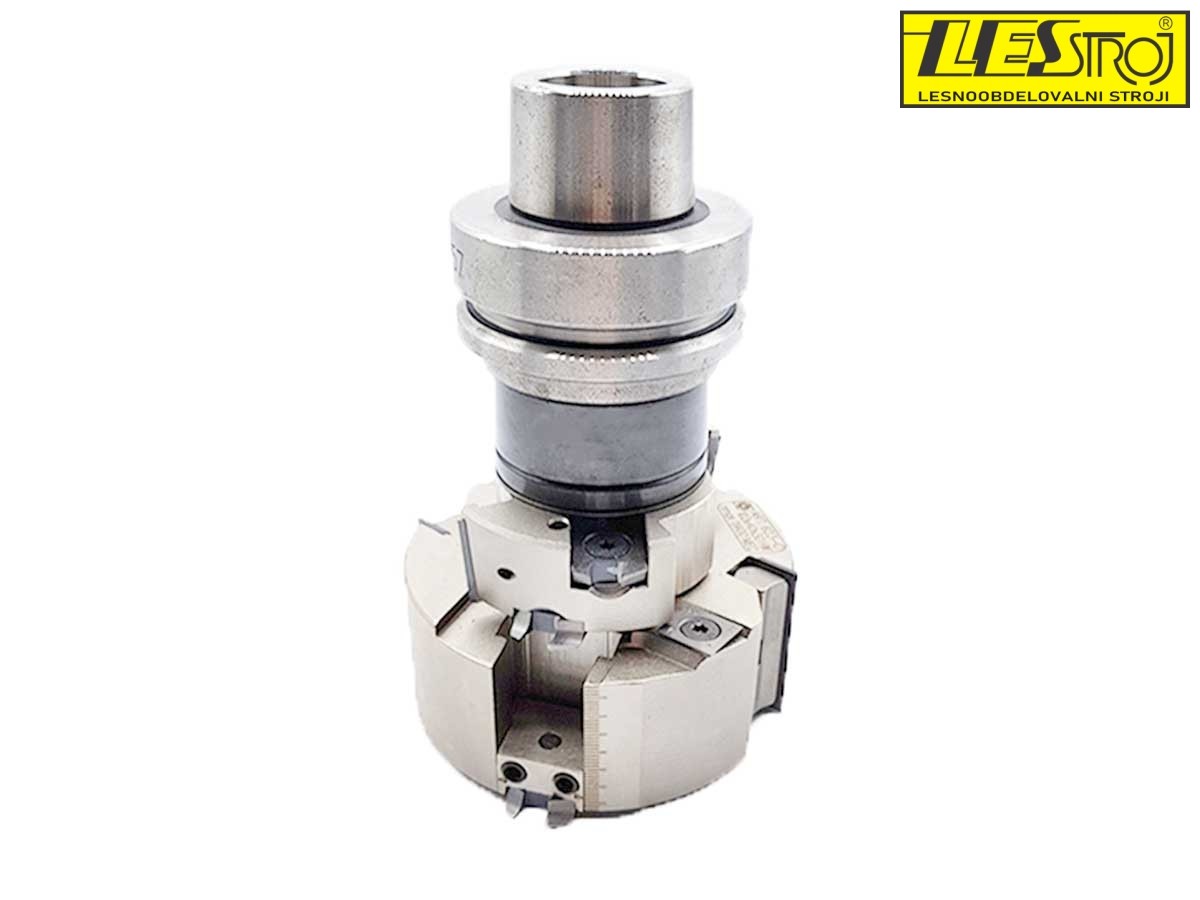

CNC set for doors OMAS 12° / 36–56 mm
The CNC set for processing doors with thickness ranging from 36 to 56 mm in a single pass.
The OMAS set is intended for external processing of door leaves.
In a single pass, it makes a rabbet and rounds the edges. The set has the possibility of setting the thickness of door leaves from 36 to 56 mm.
The router bit is equipped with interchangeable blades that may be sharpened and rotated.
The set shank is HSK63F.
The set is an affordable solution, since it has a Z 2 + 2 interchangeable system (standard plates).
Data sheet
- No. of blades
- 2 + 2 + 2
- Diameter (d) (mm)
- 30
- Diameter (D) (mm)
- 97
- Max. rotational speed
- 11400
