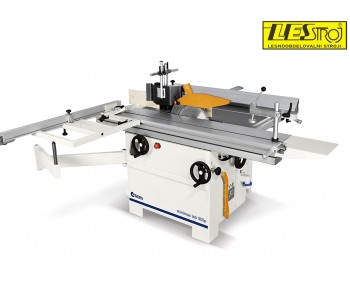

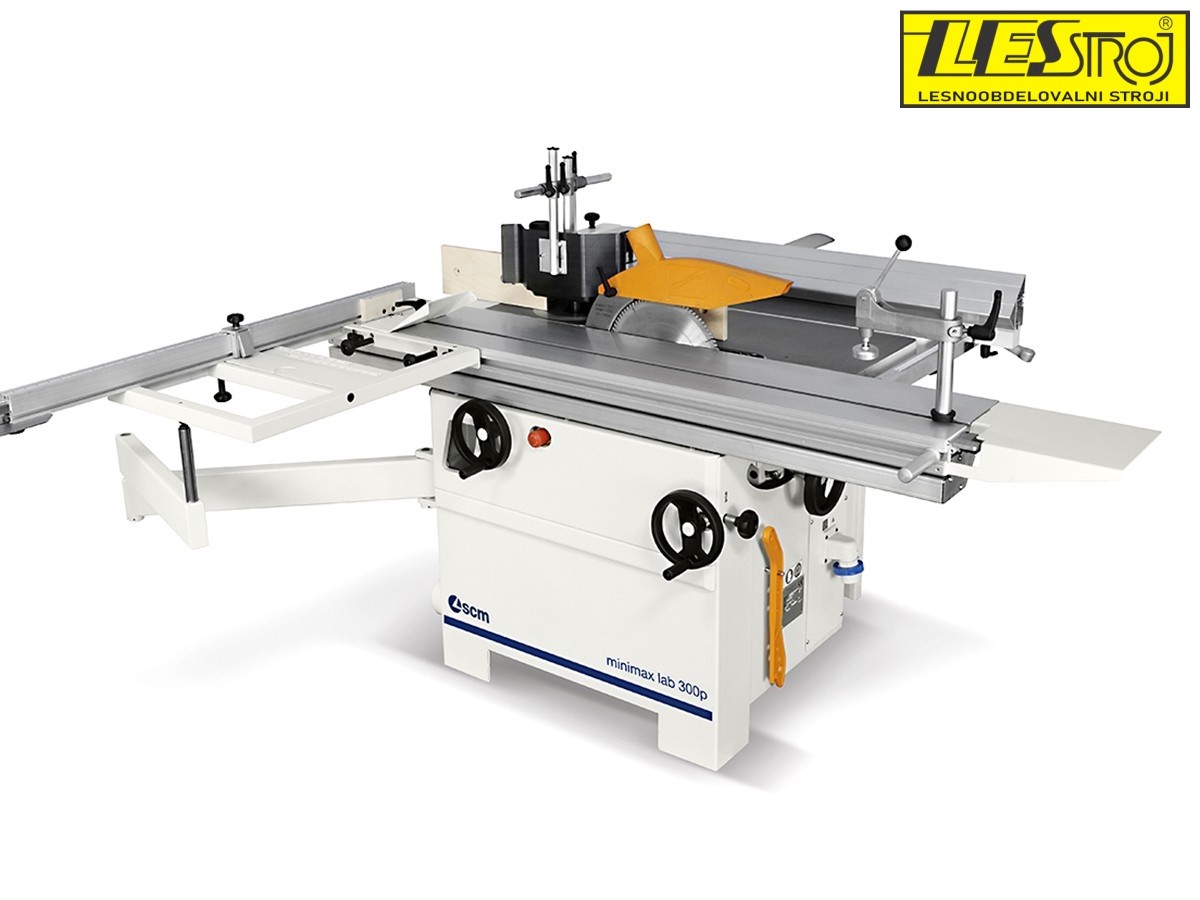

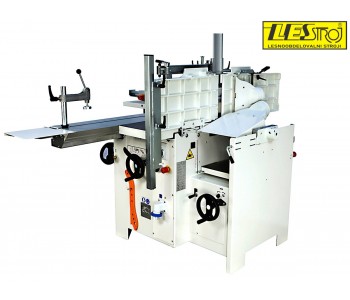

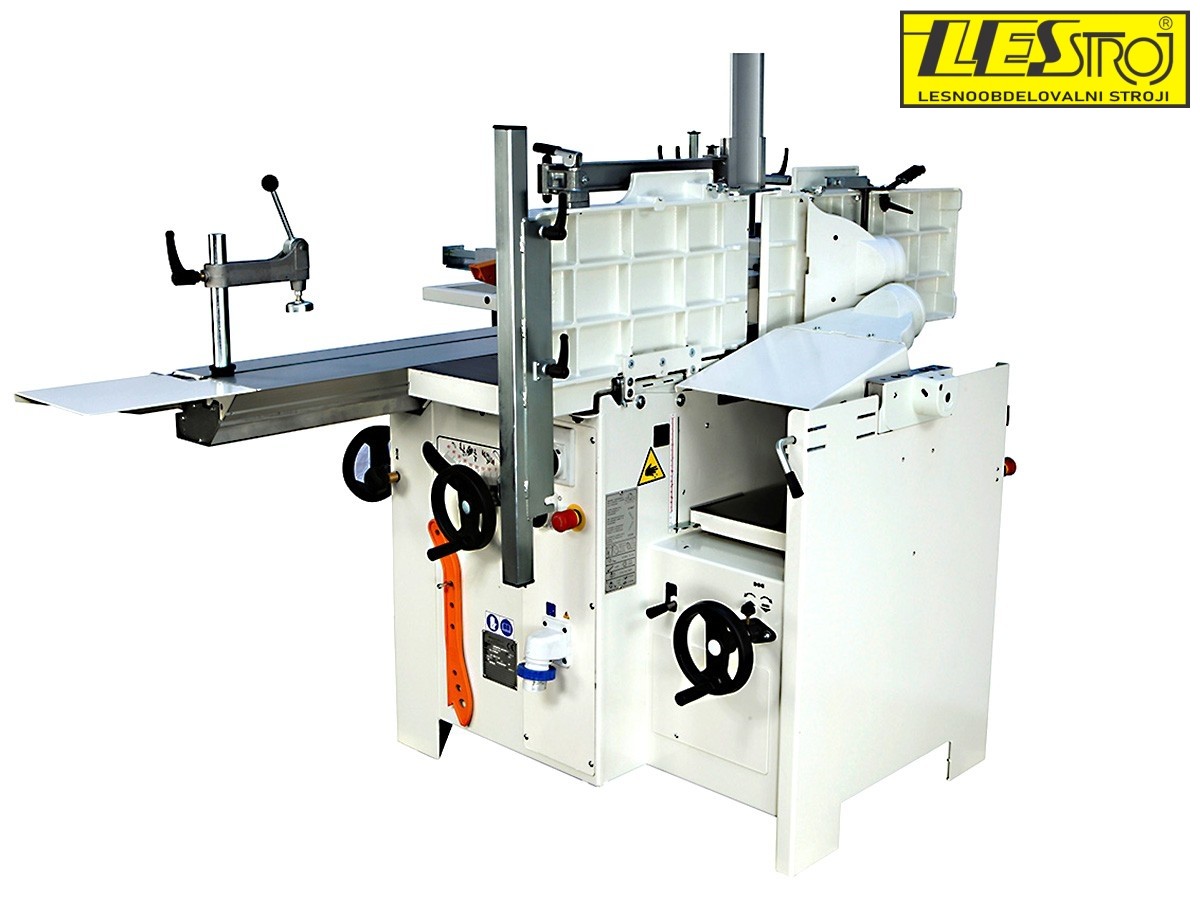

Universal Combined Machine Minimax LAB300p

Data sheet

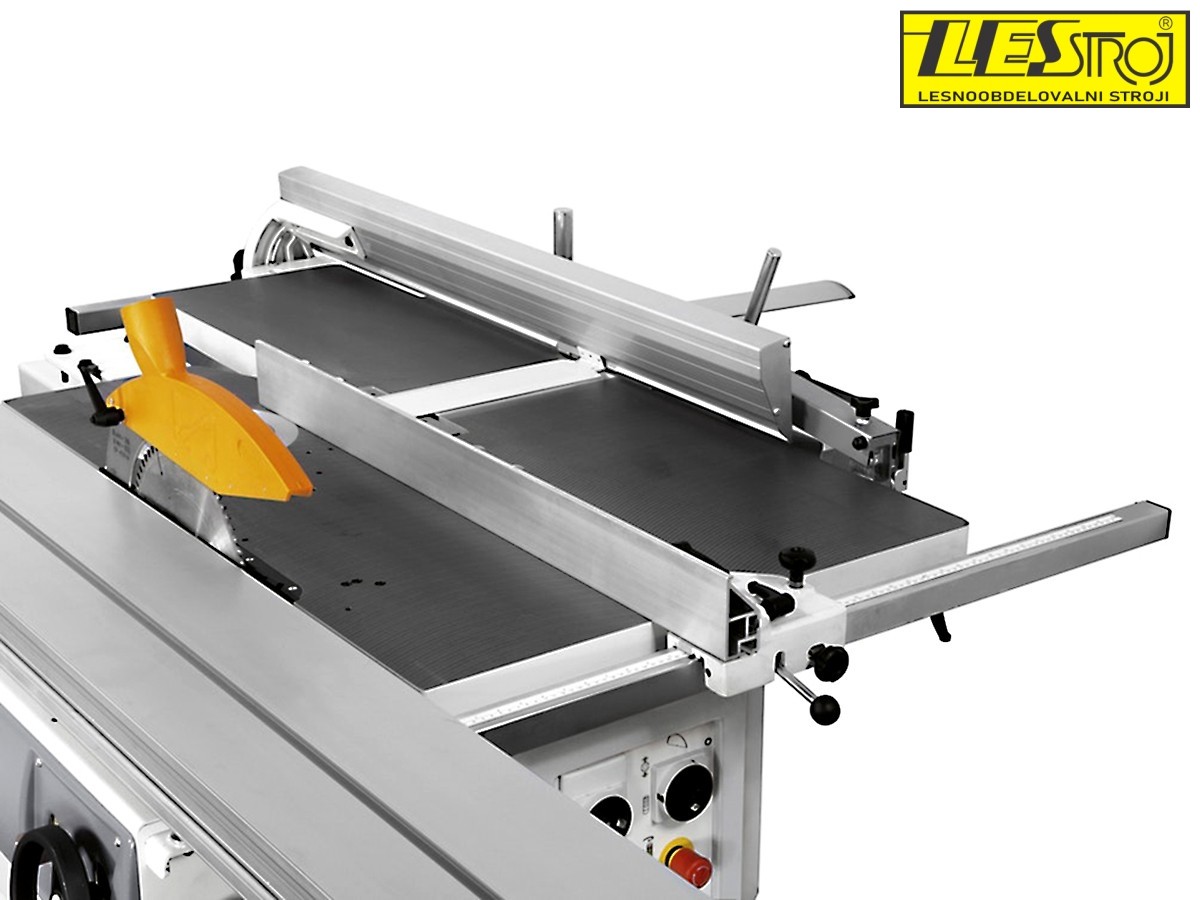

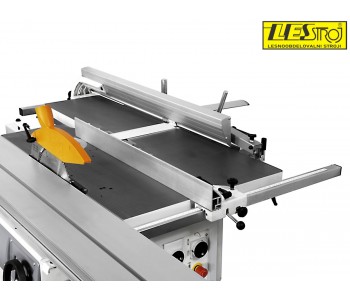

SLIDING TABLE SAW

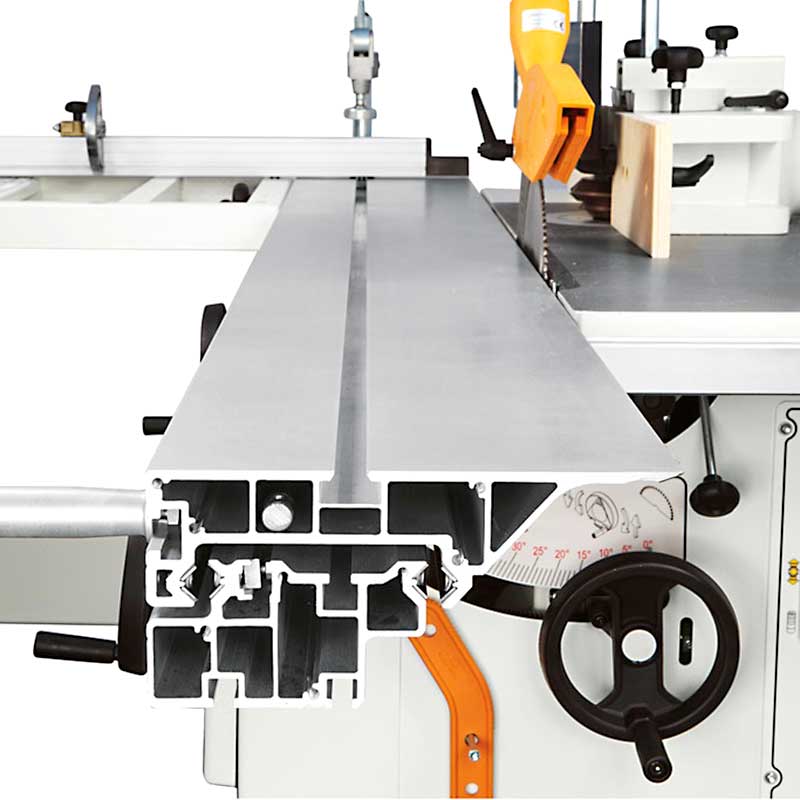

Saw carriage length

1600

Max. saw blade diameter (mm)

315

Scoring saw blade (mm)

opcija

Parallel cut-off width (mm)

650

Saw blade tilting (°)

45

Max. cut-out at 90°/45°

100/79

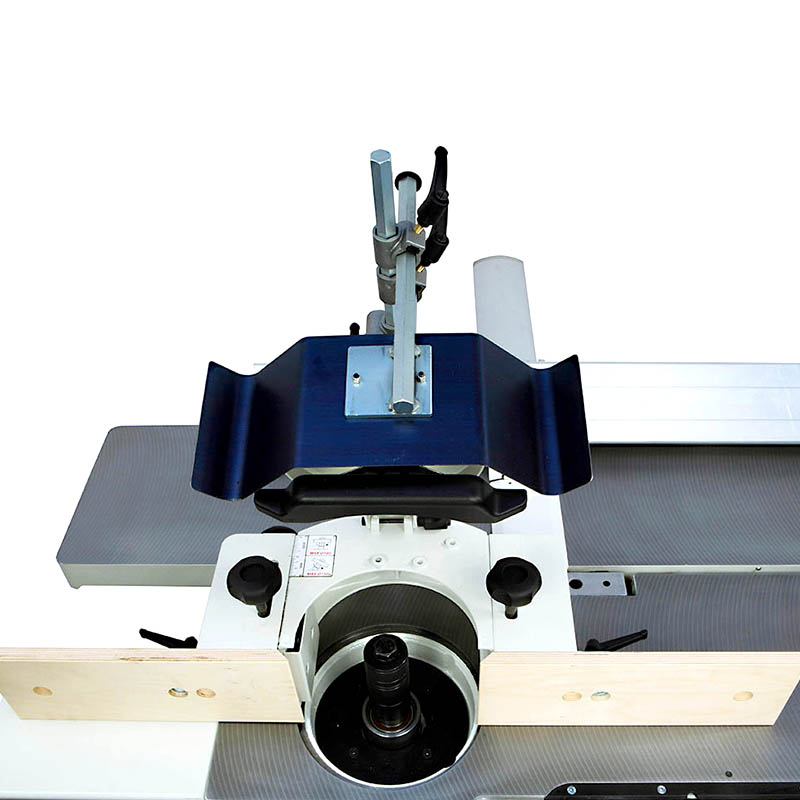

SPINDLE MOULDER:

Spindle height above the table

100

Cutter rotation speed (rpm)

3500/7500/10000

SURFACE PLANER:

Worktable length

Working width (mm)

300

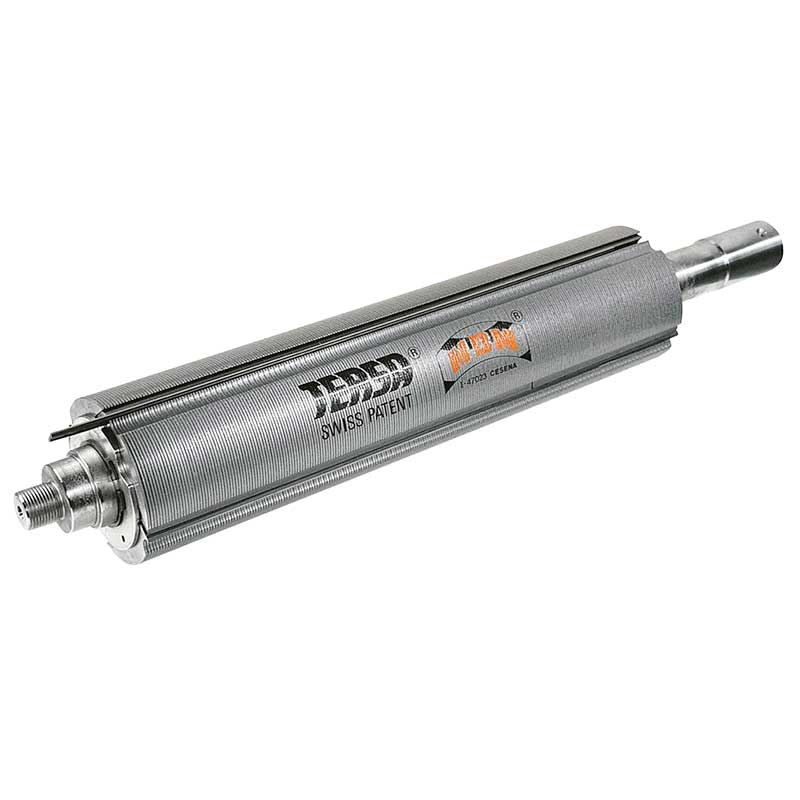

Planer head diameter (no. of knives)

72 mm / 3

Spindle turns

5200

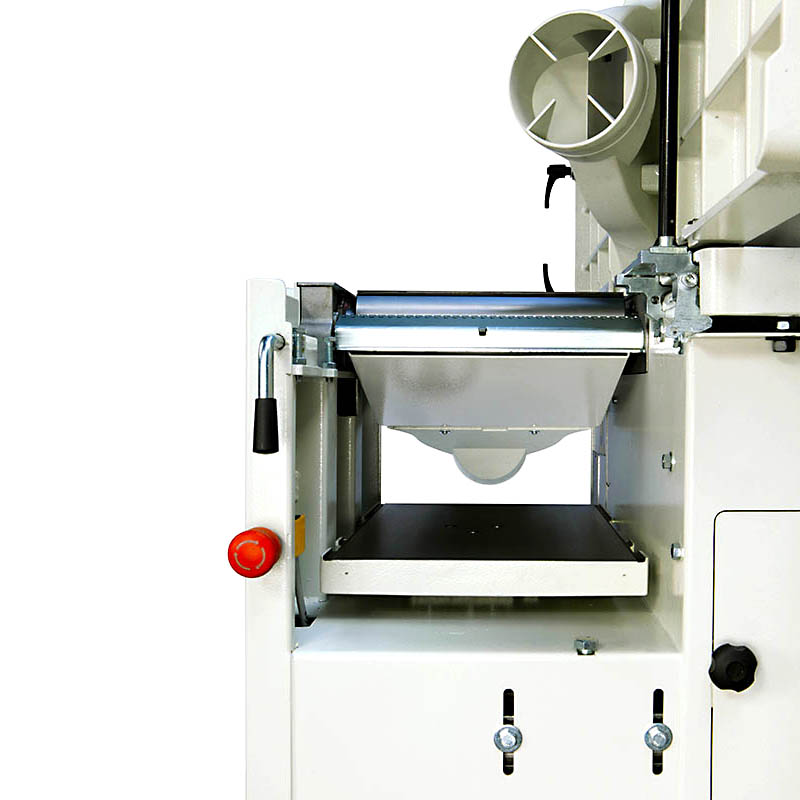

THICKNESSER

Working height (mm)

220

Feed speed

7

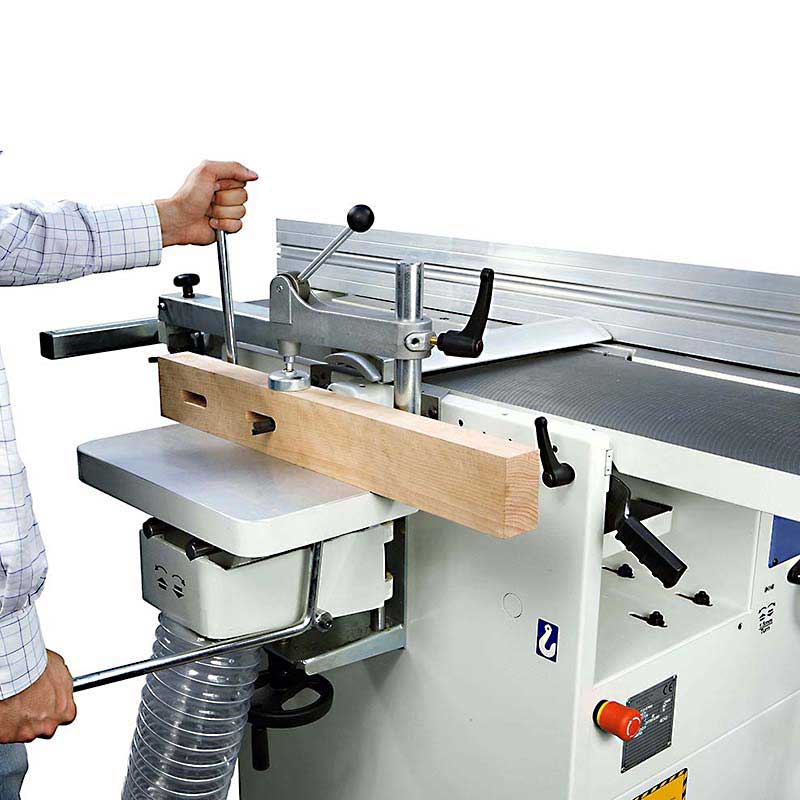

HORIZONTAL MORTISER:

Shank diameter (mm)

16

OTHER TECHNICAL DETAILS:

Weight (kg)

485

Extraction nozzles (mm)

Engines

3 x 4 kW (S6)
