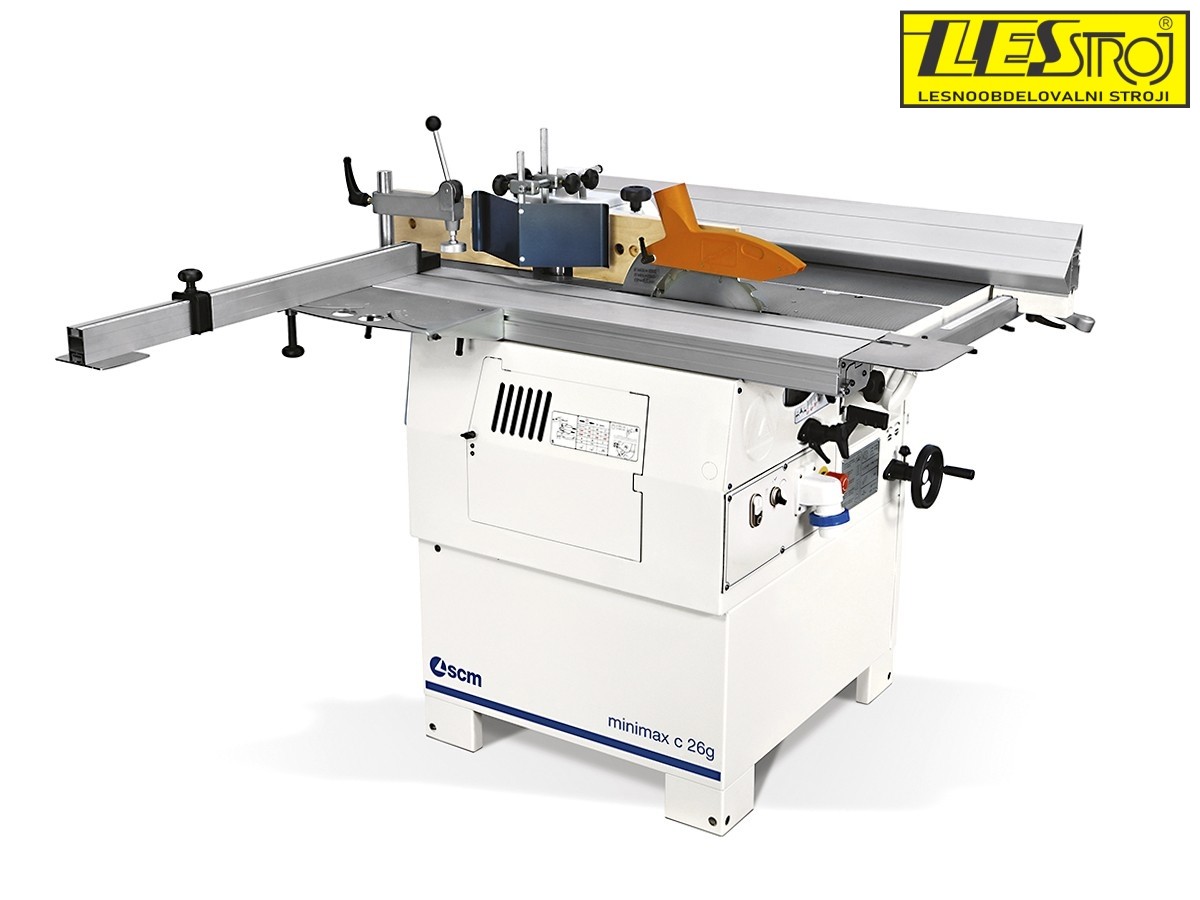

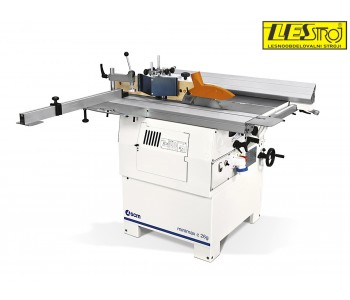

Universal Combined Machine Mini Max C26 Genius

Data sheet

Saw carriage length

1024

Working width (mm)

260

Worktable length

1024

Feed speed

6

Spindle rotation speed (rpm)

5000 / 7500

Saw blade diameter (mm)

250

Max. working height (mm)

200

Parallel cut-off width (mm)

500

Min. working height (mm)

3

Spindle height above the table

75

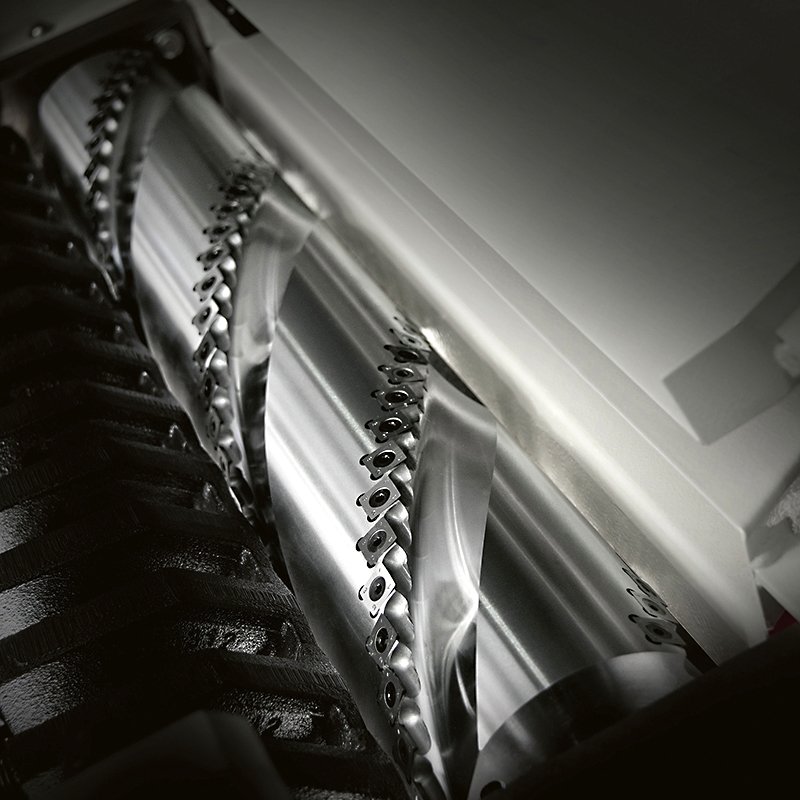

Planer head diameter (no. of knives)

62 mm / 2

Saw blade tilting (°)

45

Spindle turns

5100

Motor power (kW)

2,2

Worktable dimension (mm)

380 x 200
1024 x 224

Shank diameter (mm)

16

Weight (kg)

245
