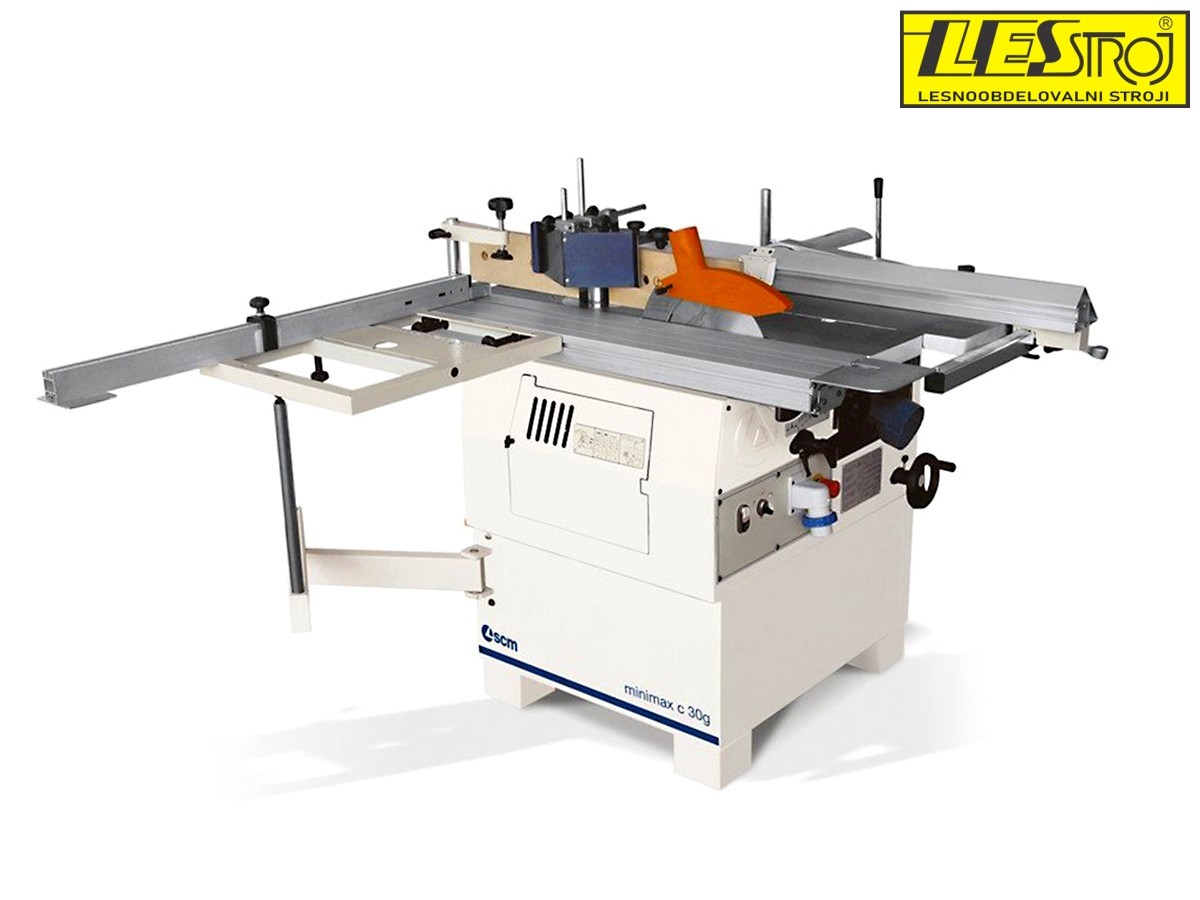

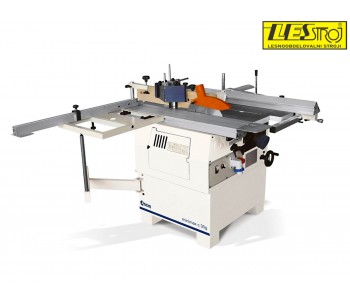

Universal combined machine Mini Max C30 Genius

Data sheet

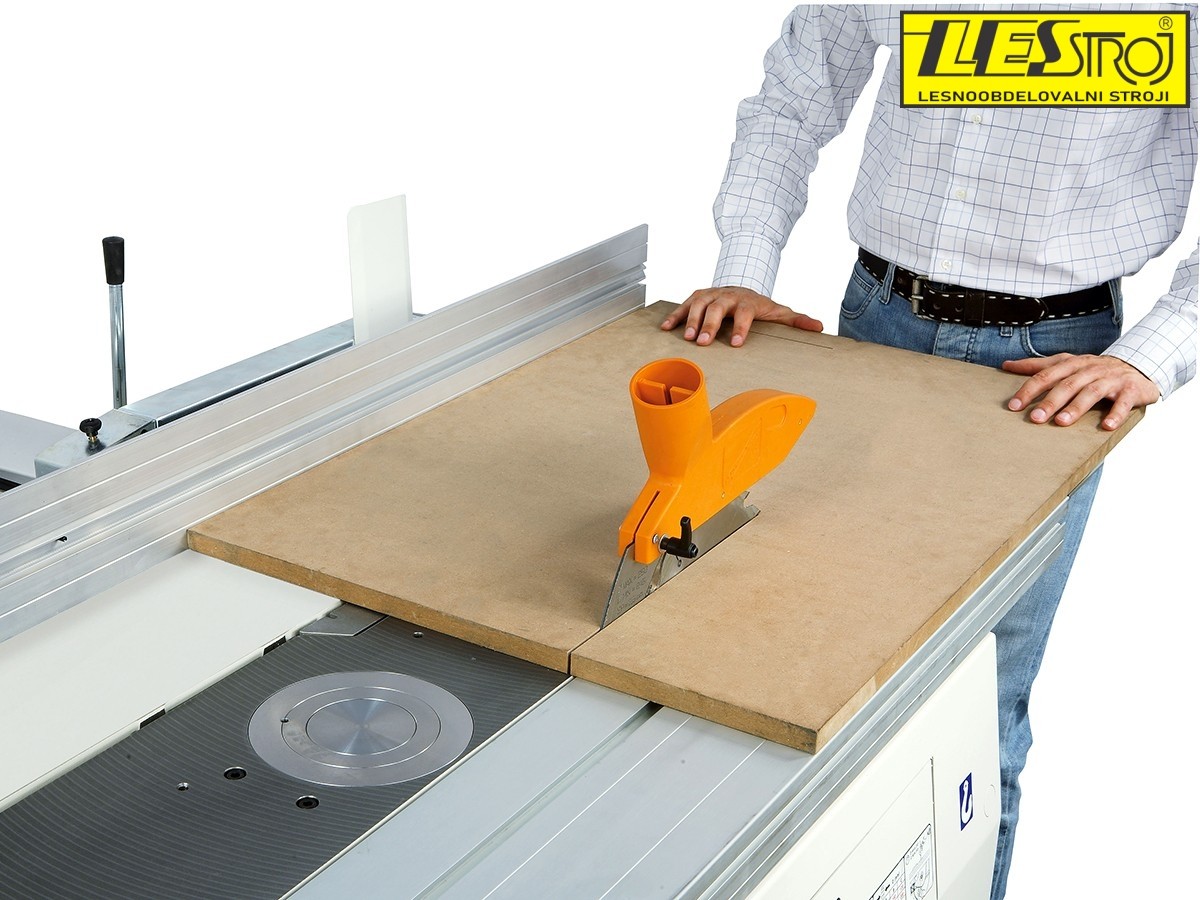

Saw carriage length

1140

Working width (mm)

300

Worktable length

300x1200

Feed speed

6

Cutter rotation speed (rpm)

5000/7500

Max. saw blade diameter (mm)

250

Max. working height (mm)

200

Parallel cut-off width (mm)

540

Min. working height (mm)

3

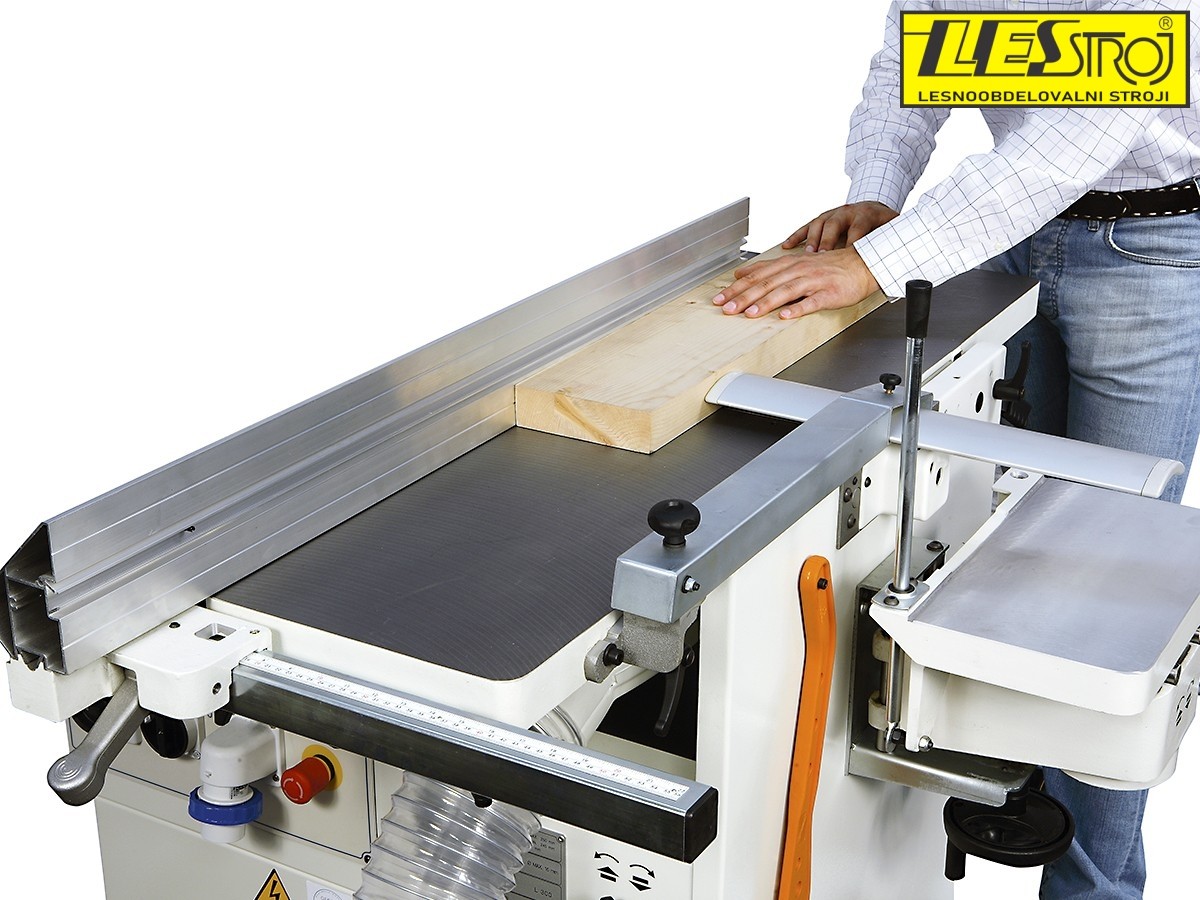

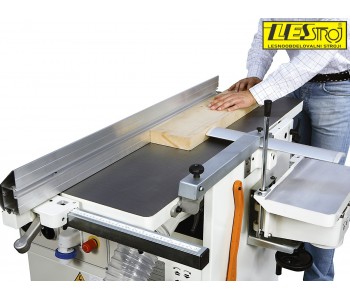

SURFACE PLANER:

-

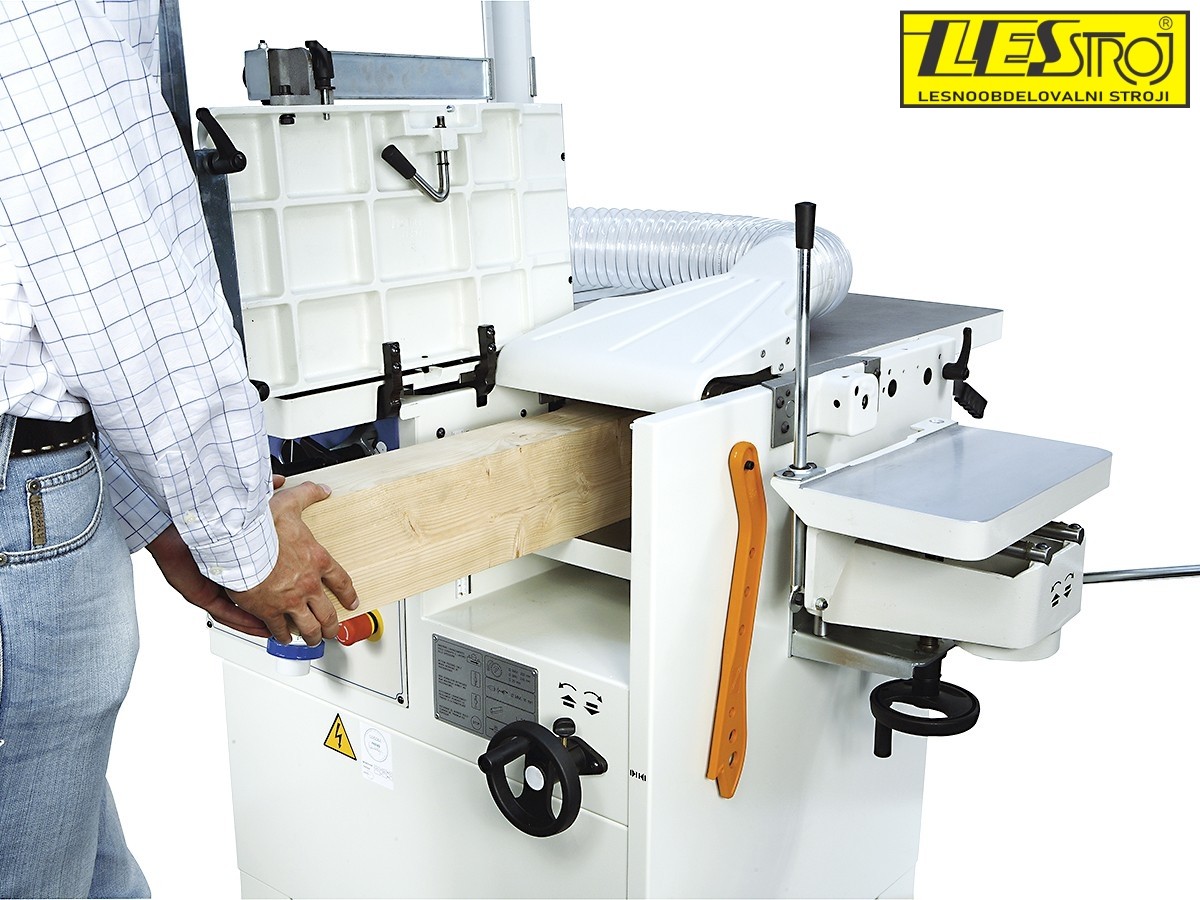

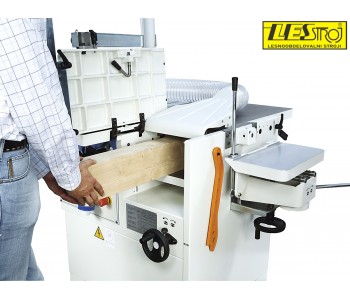

THICKNESSER

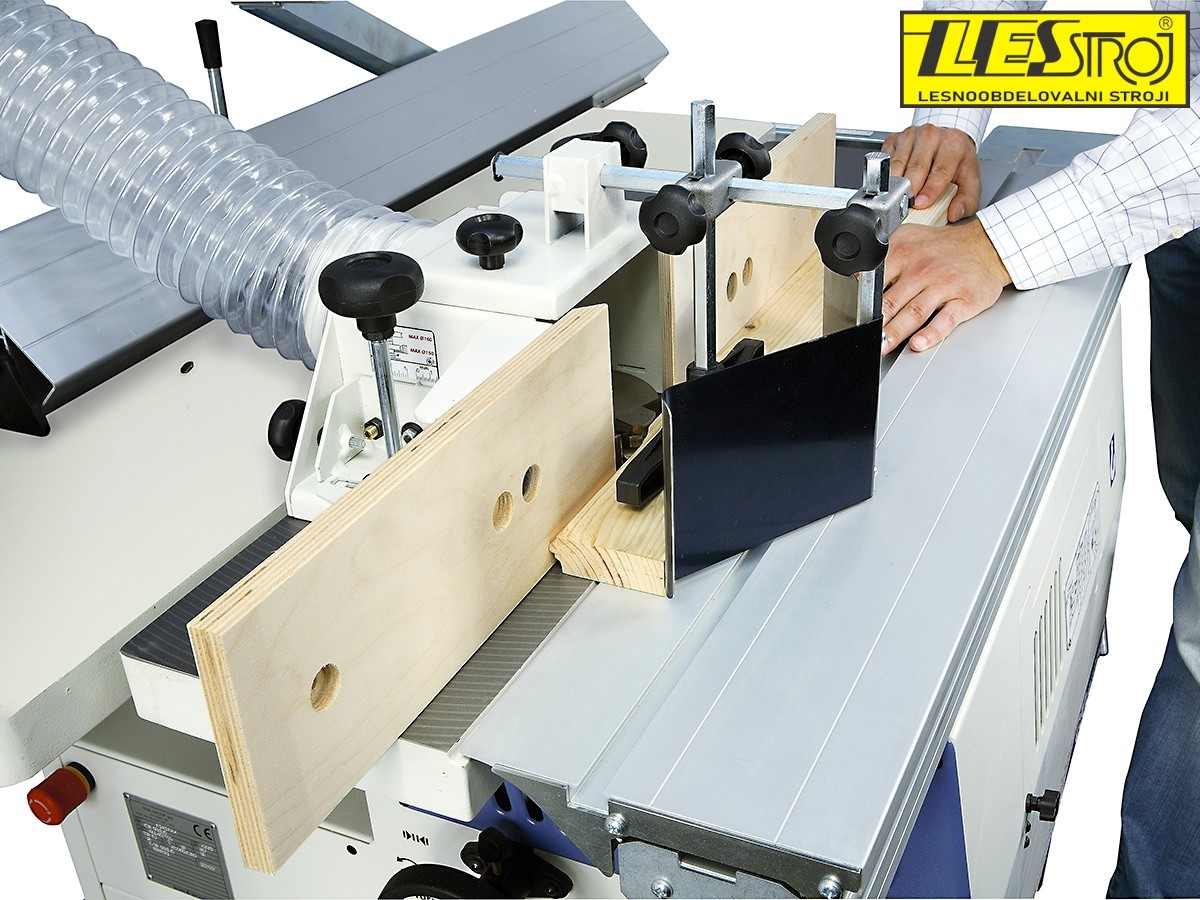

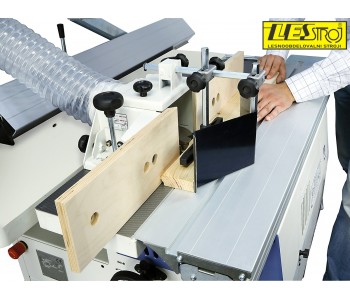

SPINDLE MOULDER:

Spindle height above the table

75

HORIZONTAL MORTISER:

(opcija.)

Engines

3 x 1,5 kW(2 KM) - trofazni

Planer head diameter (no. of knives)

62 mm/2

Saw blade tilting (°)

45

Spindle turns

5100

Shank diameter (mm)

16 (opc. 0 - 16)

Worktable dimension (mm)

1040 x 224

OTHER TECHNICAL DETAILS:

-

Max. spindle diameter under the drilling unit

150

Extraction nozzles (mm)

3x120 / 1x80

Weight (kg)

250
