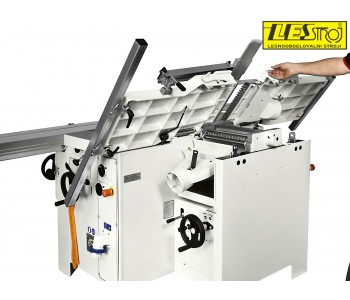

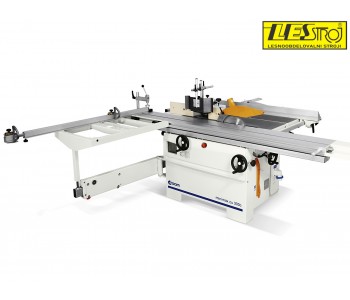

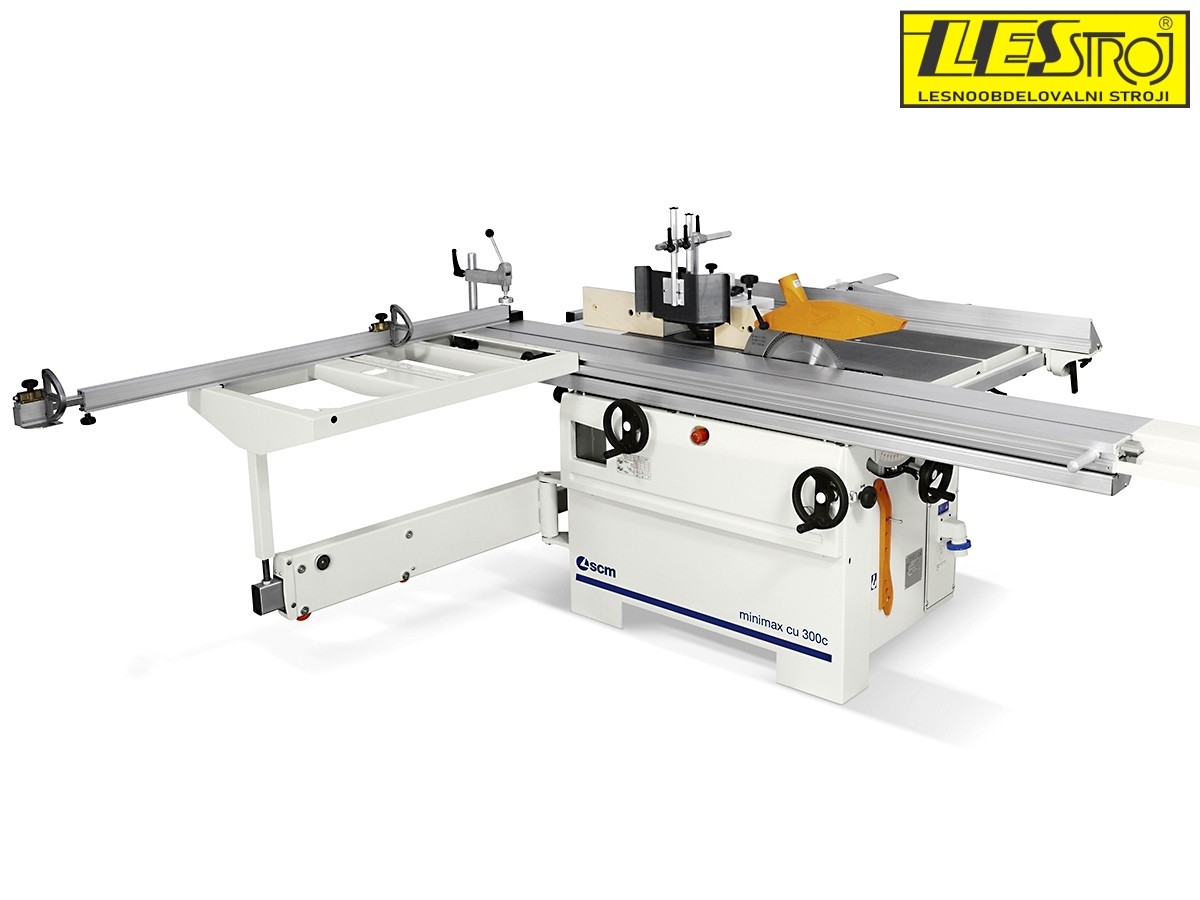

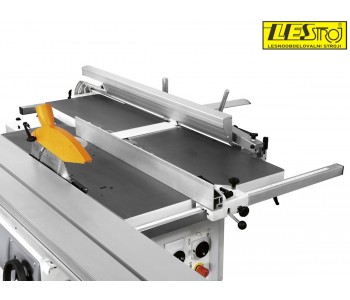

Universal combined machine Mini Max Cu 300 Classic

Data sheet

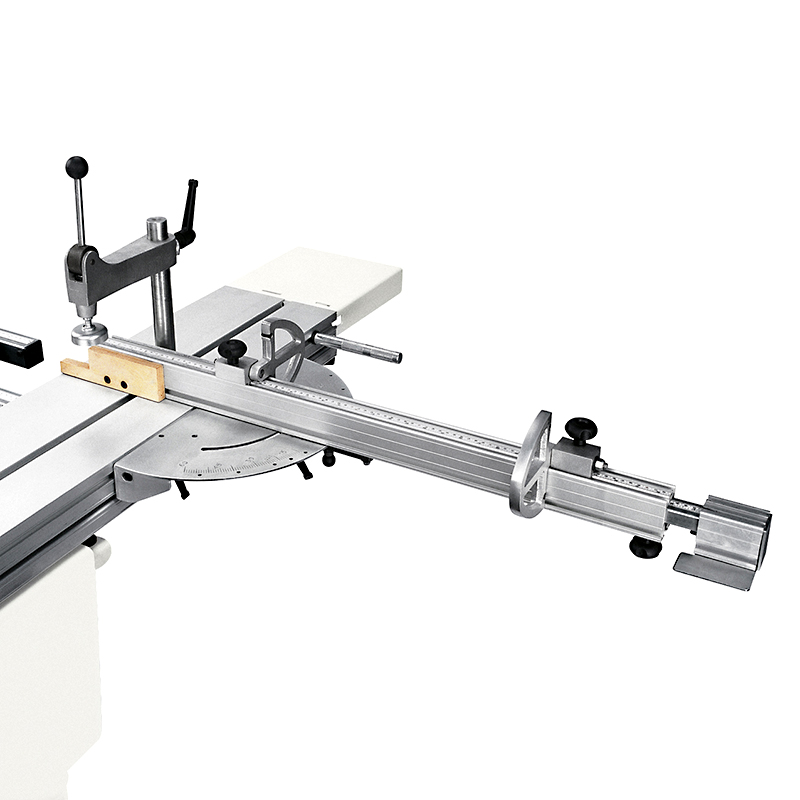

Saw carriage length

1600 mm (2310 mm opci.)

Working width (mm)

300

Worktable length

300x1510

Feed speed

7

Cutter rotation speed (rpm)

1400/3500/6000/8000

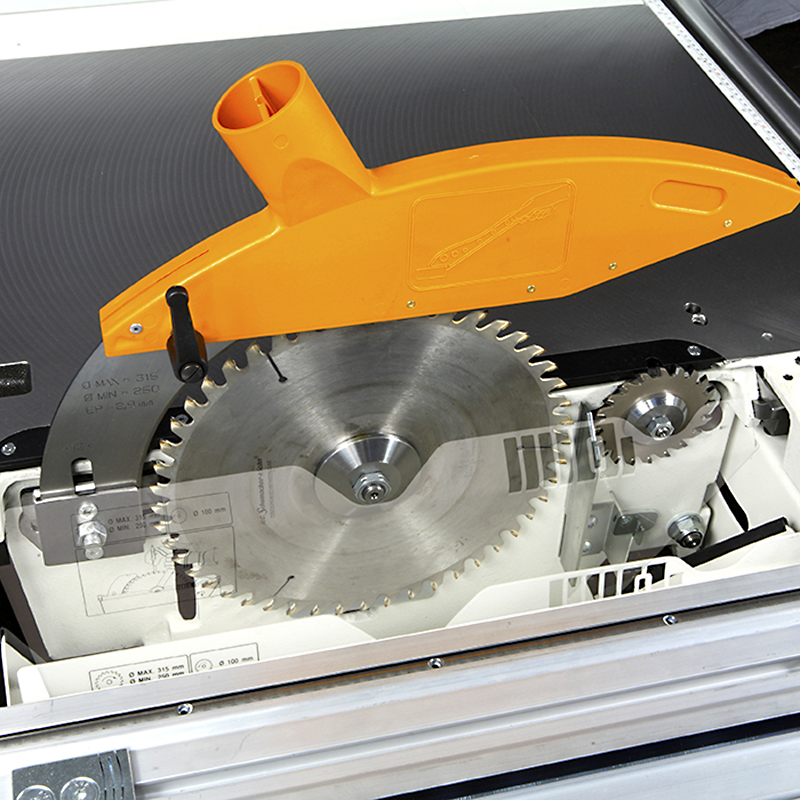

Max. saw blade diameter (mm)

315

Max. working height (mm)

230

Parallel cut-off width (mm)

900

Min. working height (mm)

3

SURFACE PLANER:

-

THICKNESSER

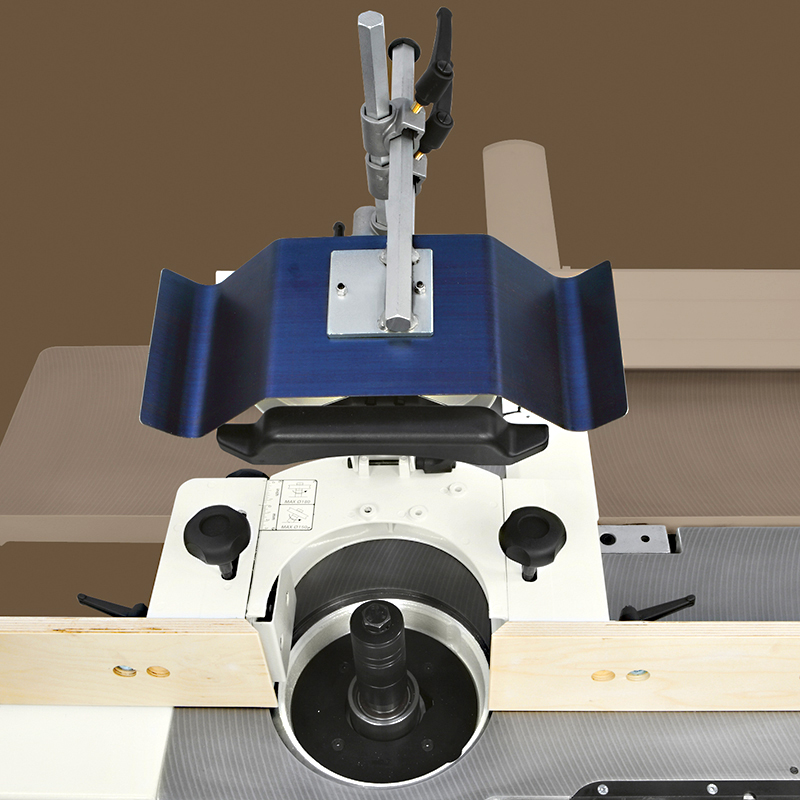

SPINDLE MOULDER:

Spindle height above the table

125

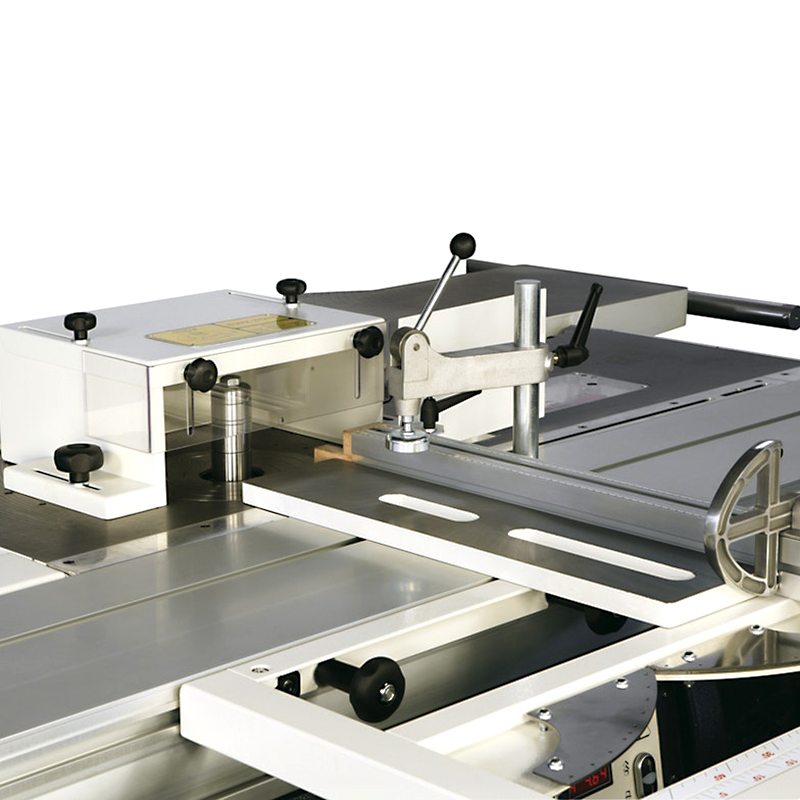

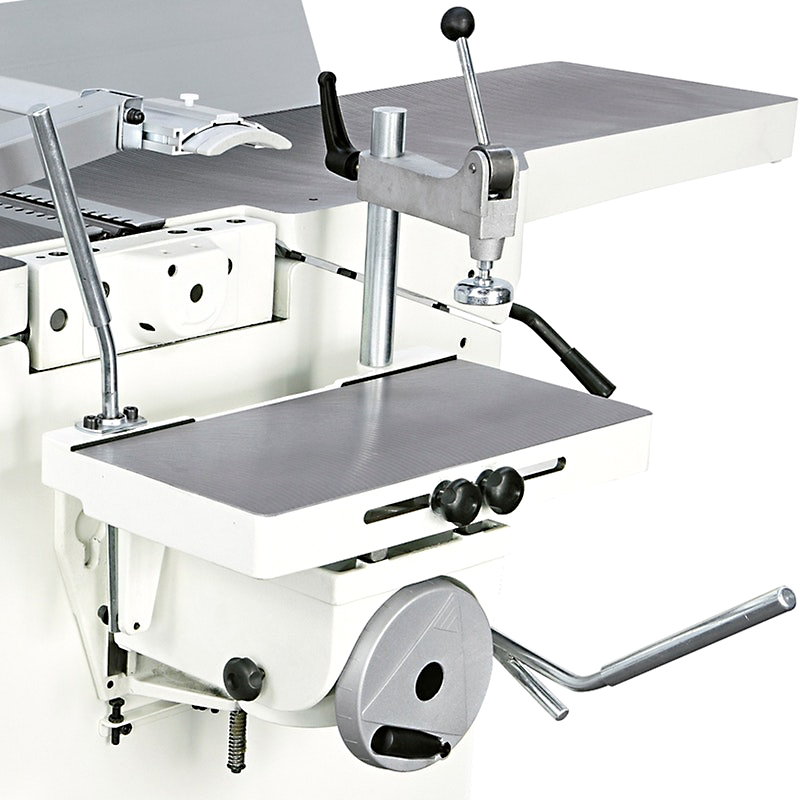

HORIZONTAL MORTISER:

Engines

3 x 5,0 kW - trofazni

Guide frame tilt (°)

90-45

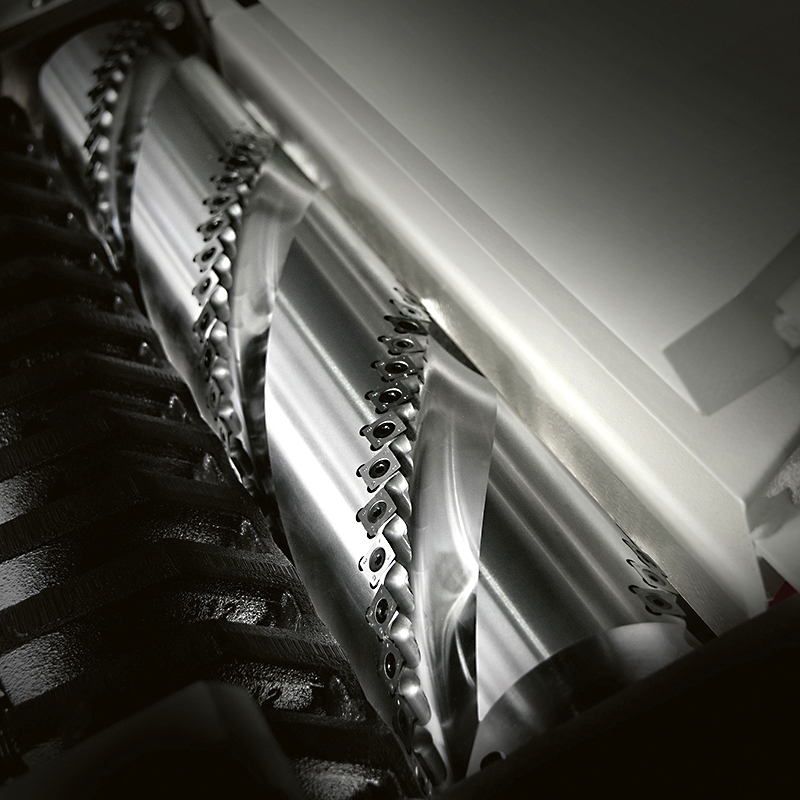

Planer head diameter (no. of knives)

87 mm/3

Saw blade tilting (°)

45

Scoring saw blade (mm)

opcija

Spindle turns

5100

Shank diameter (mm)

16 (opc. 0 - 16)

Worktable dimension (mm)

1100 x 340

OTHER TECHNICAL DETAILS:

-

Max. spindle diameter under the drilling unit

210

Extraction nozzles (mm)

3x120 / 1x80

Weight (kg)

525
