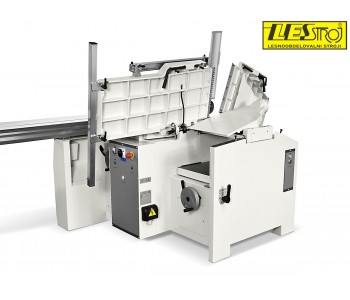

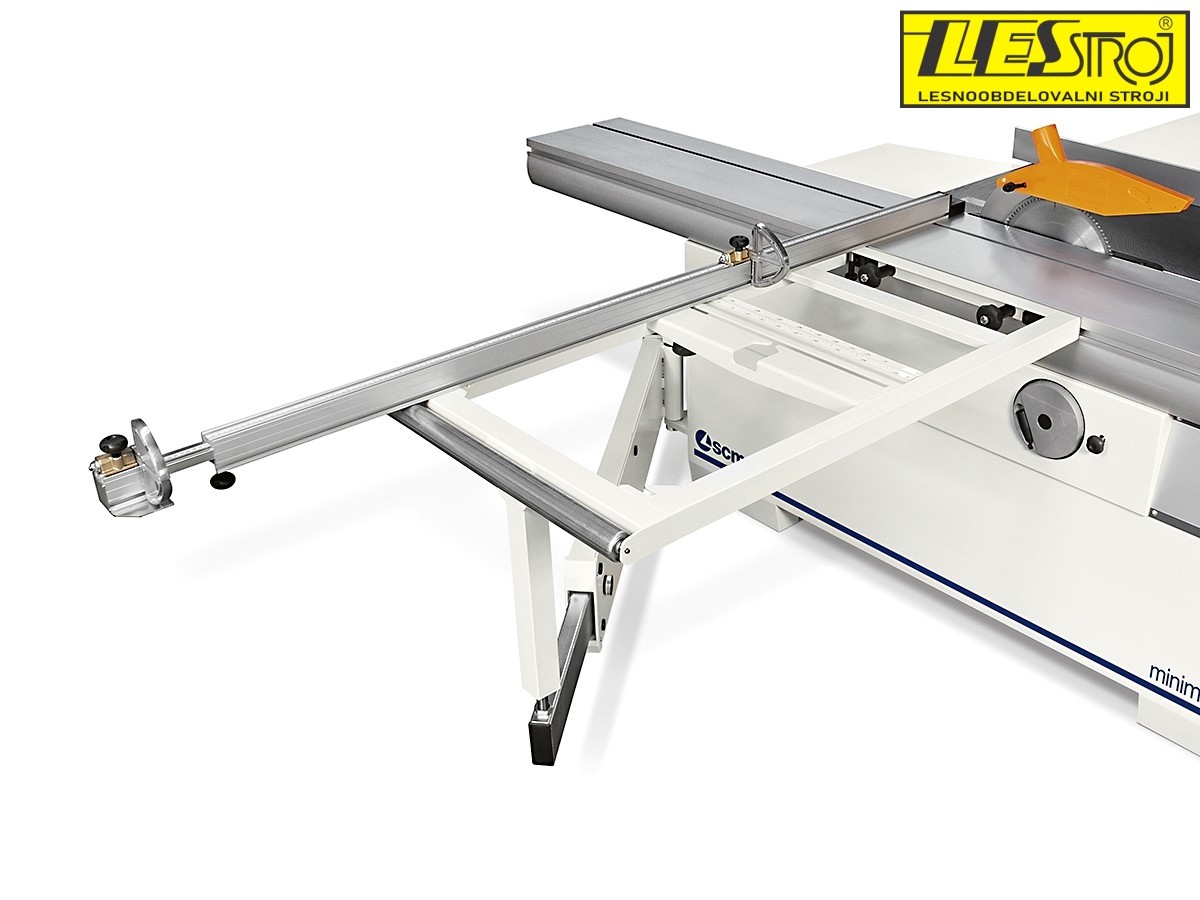

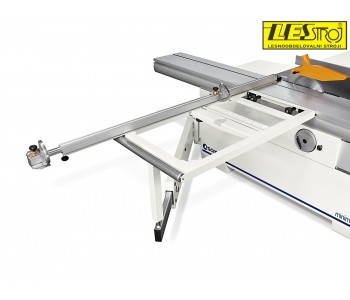

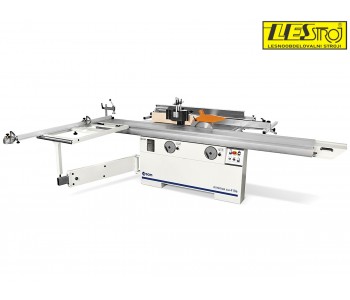

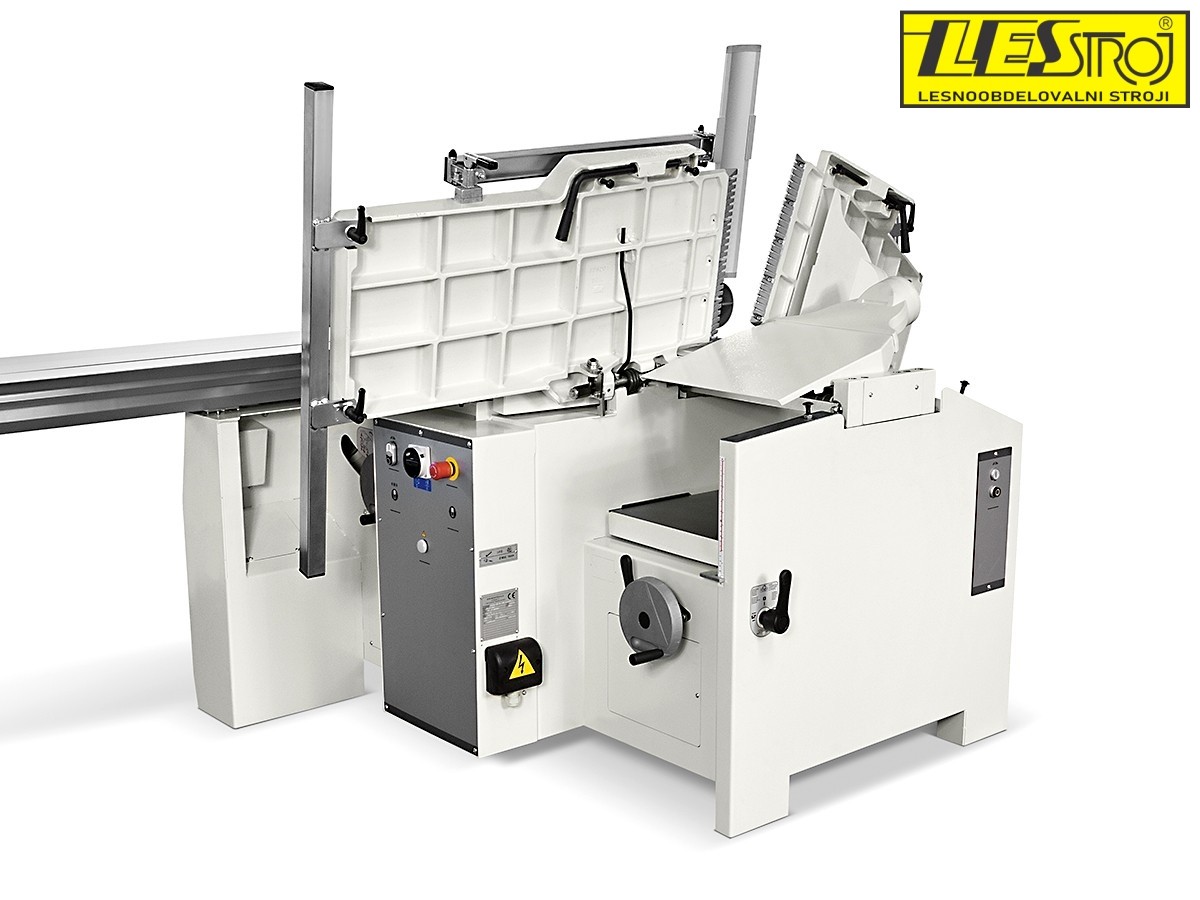

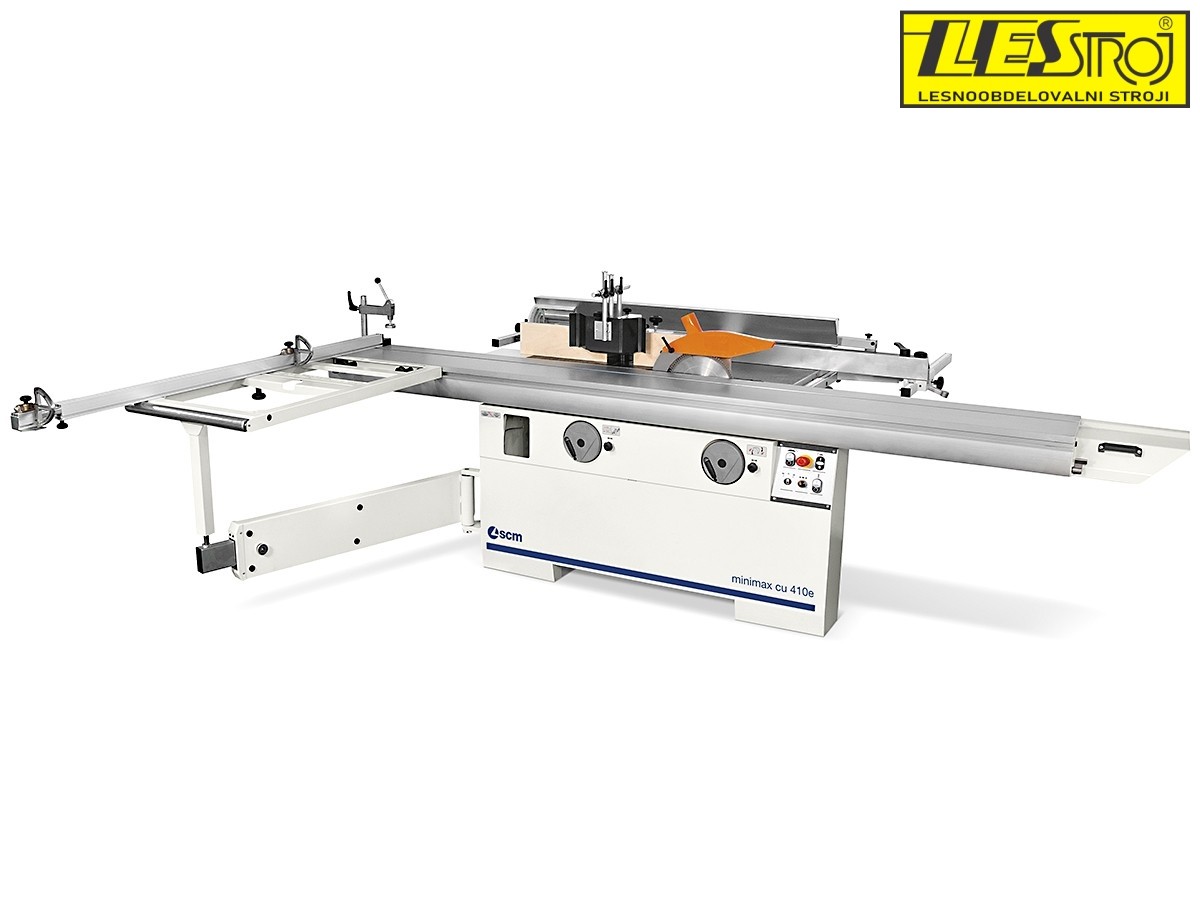

Universal Combined Machine Minimax CU410e

Data sheet

Saw carriage length

2250 / 2600 / 3200

Working width (mm)

410

Worktable length

2000

Feed speed

6 / 12

Cutter rotation speed (rpm)

3500 / 6000 / 8000 / 10000

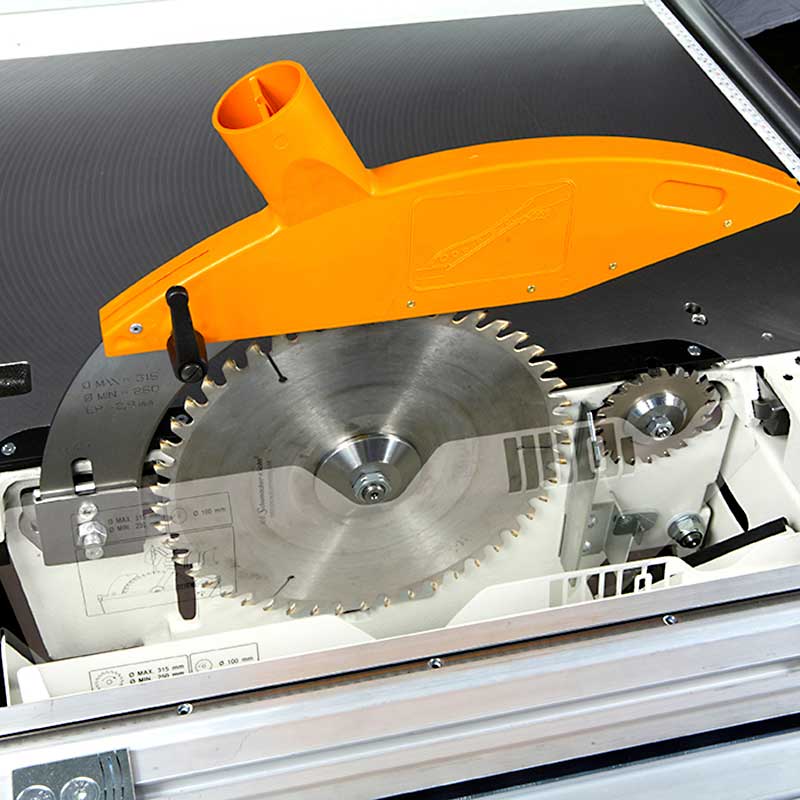

Max. saw blade diameter (mm)

315

Max. working height (mm)

230

Min. working height (mm)

3

Max. cut-off

80

SURFACE PLANER:

-

THICKNESSER

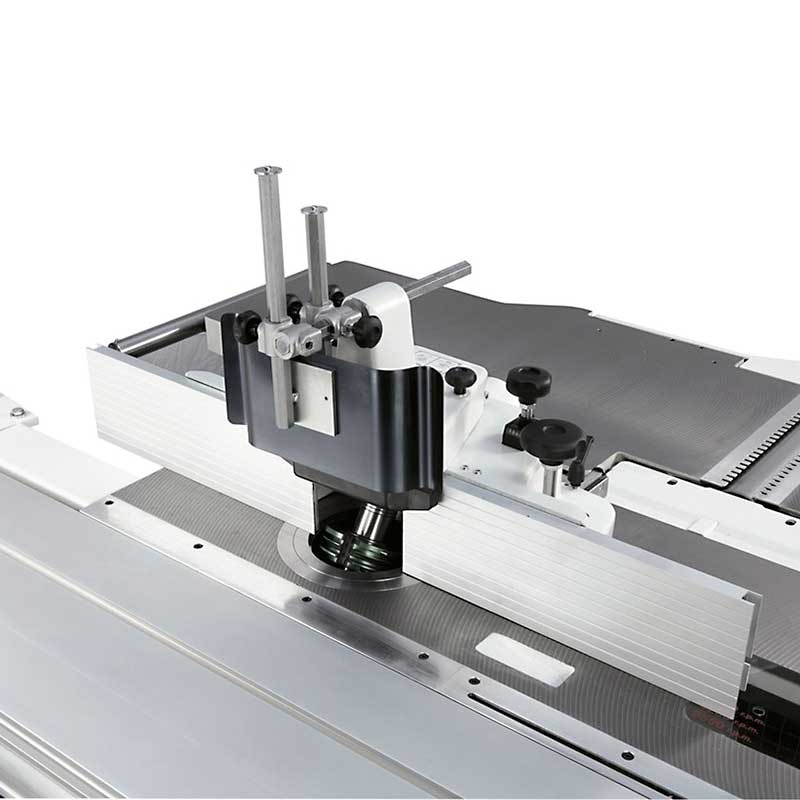

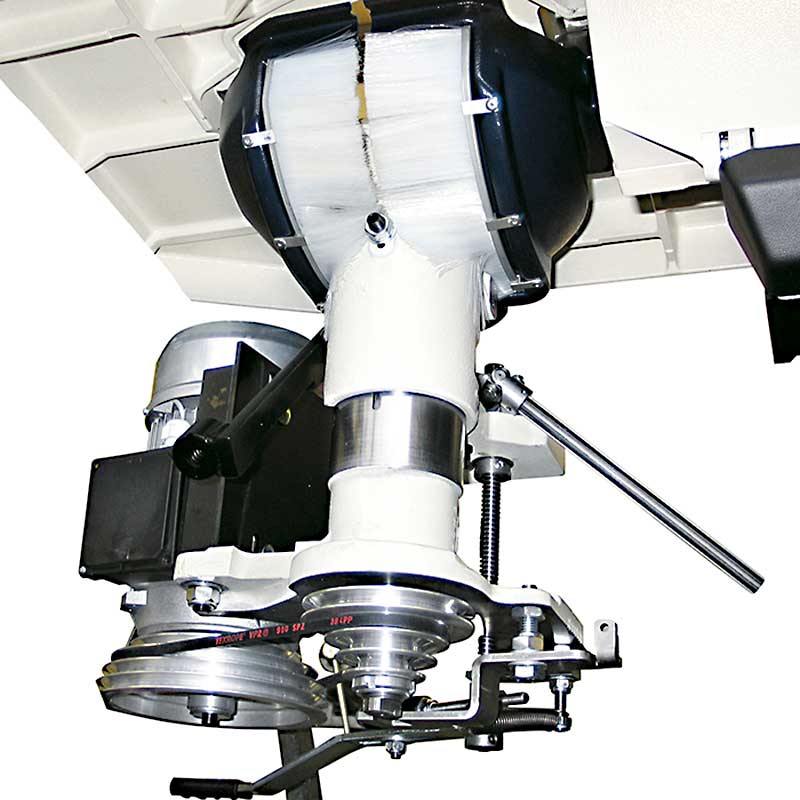

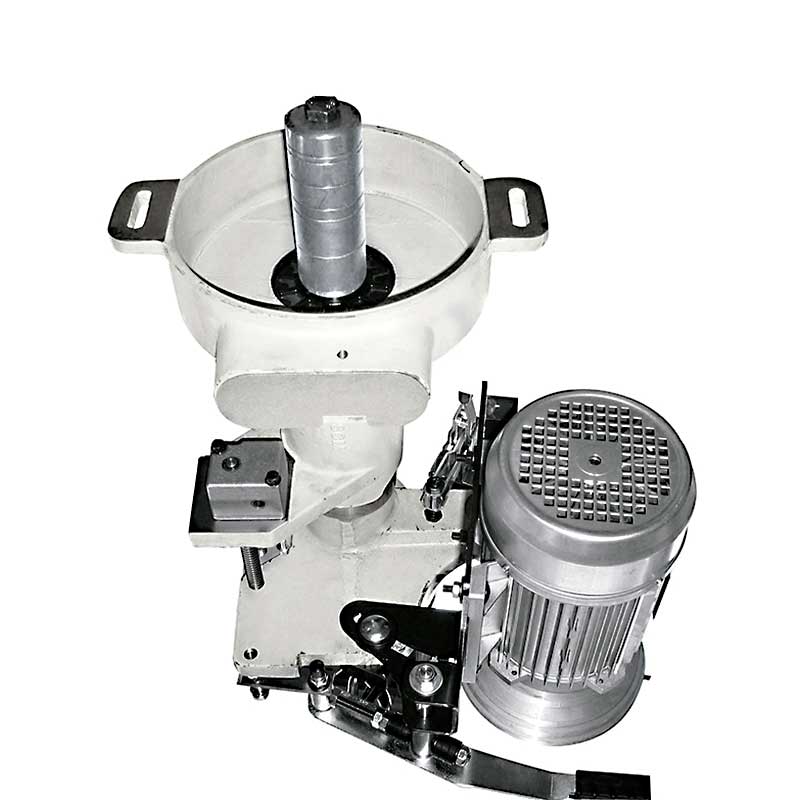

SPINDLE MOULDER:

Spindle height above the table

125

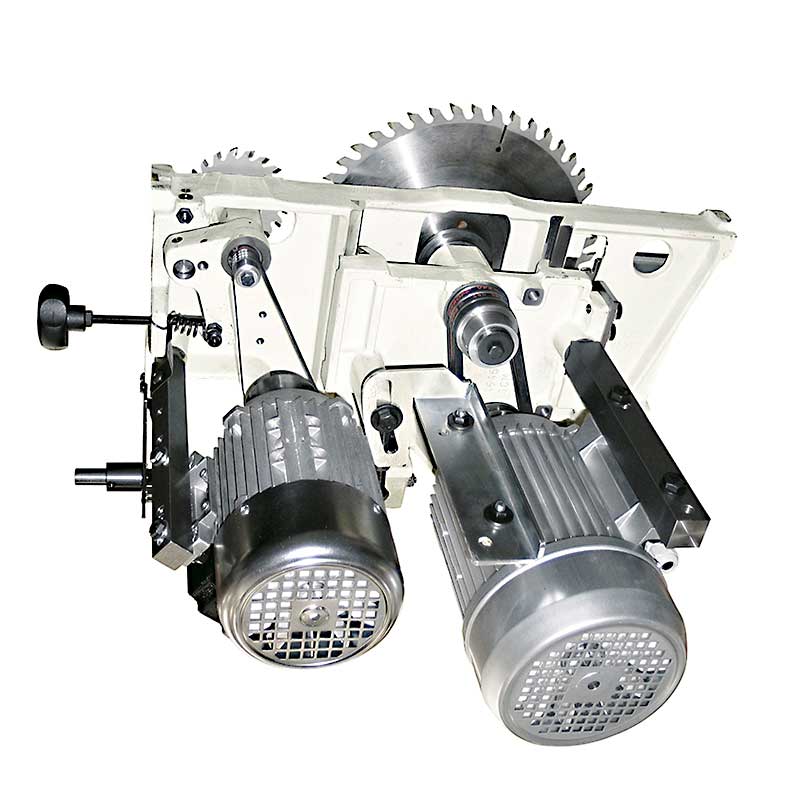

Engines

3 x 4 kW (S6)

Cut-out width on the right guide frame

1050

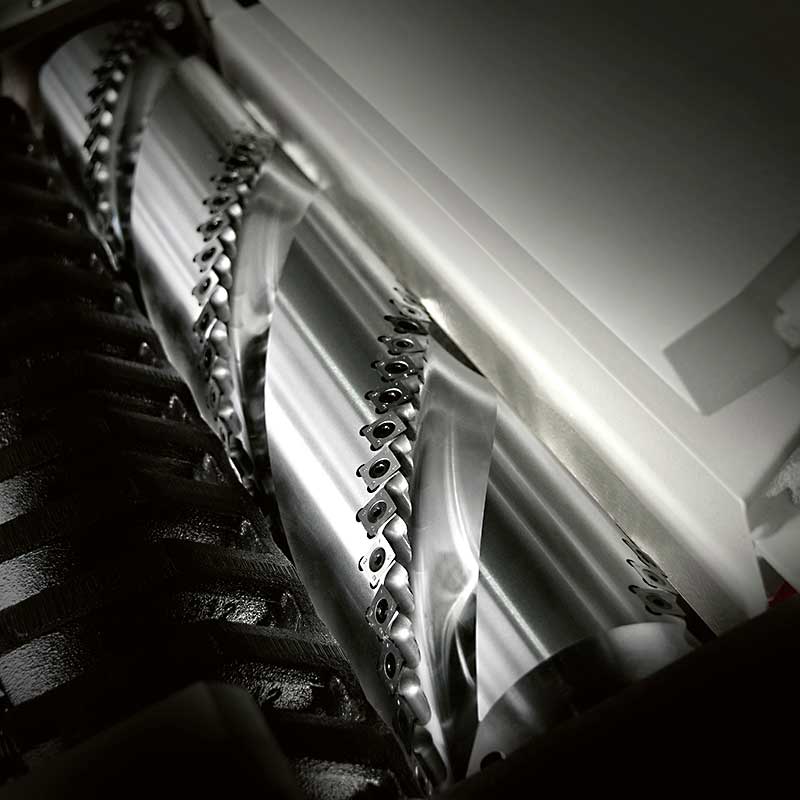

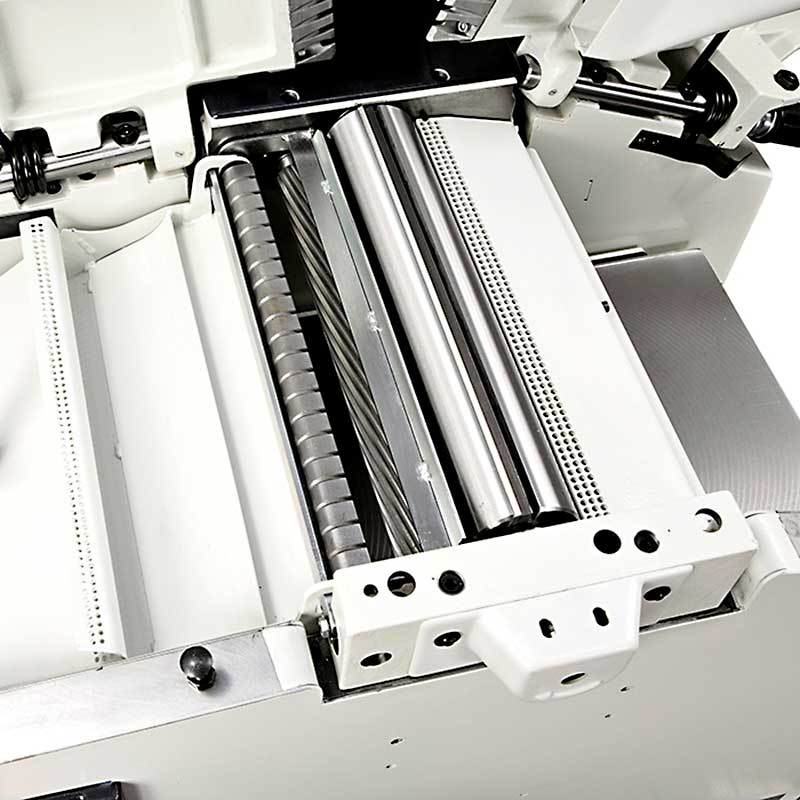

Planer head diameter (no. of knives)

87 mm / 3

Blade tilt (°)

90° - 45°

Max. cut-out at 90°/45°

100 / 70

Extraction nozzles (mm)

120

Weight (kg)

920
