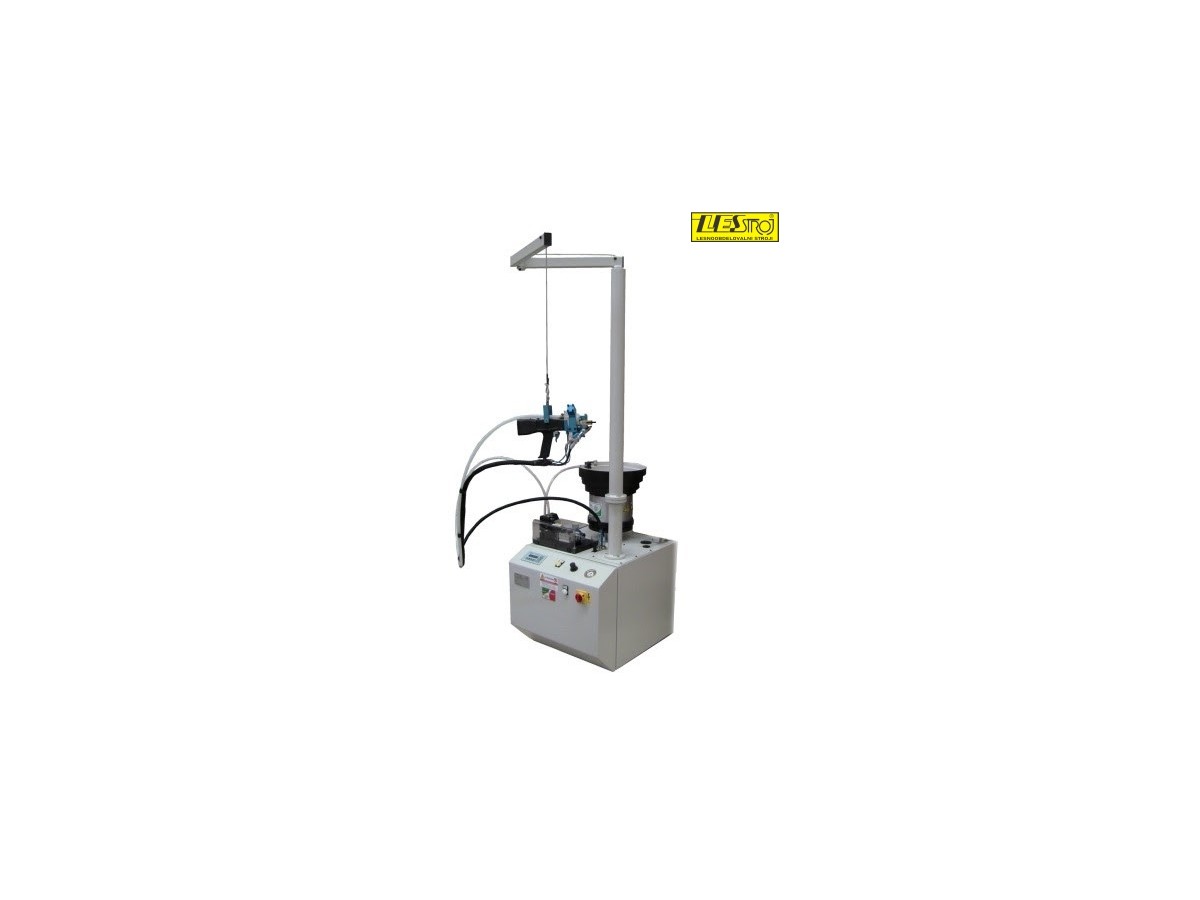

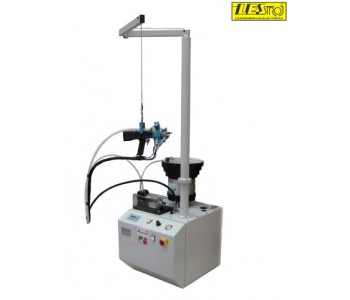

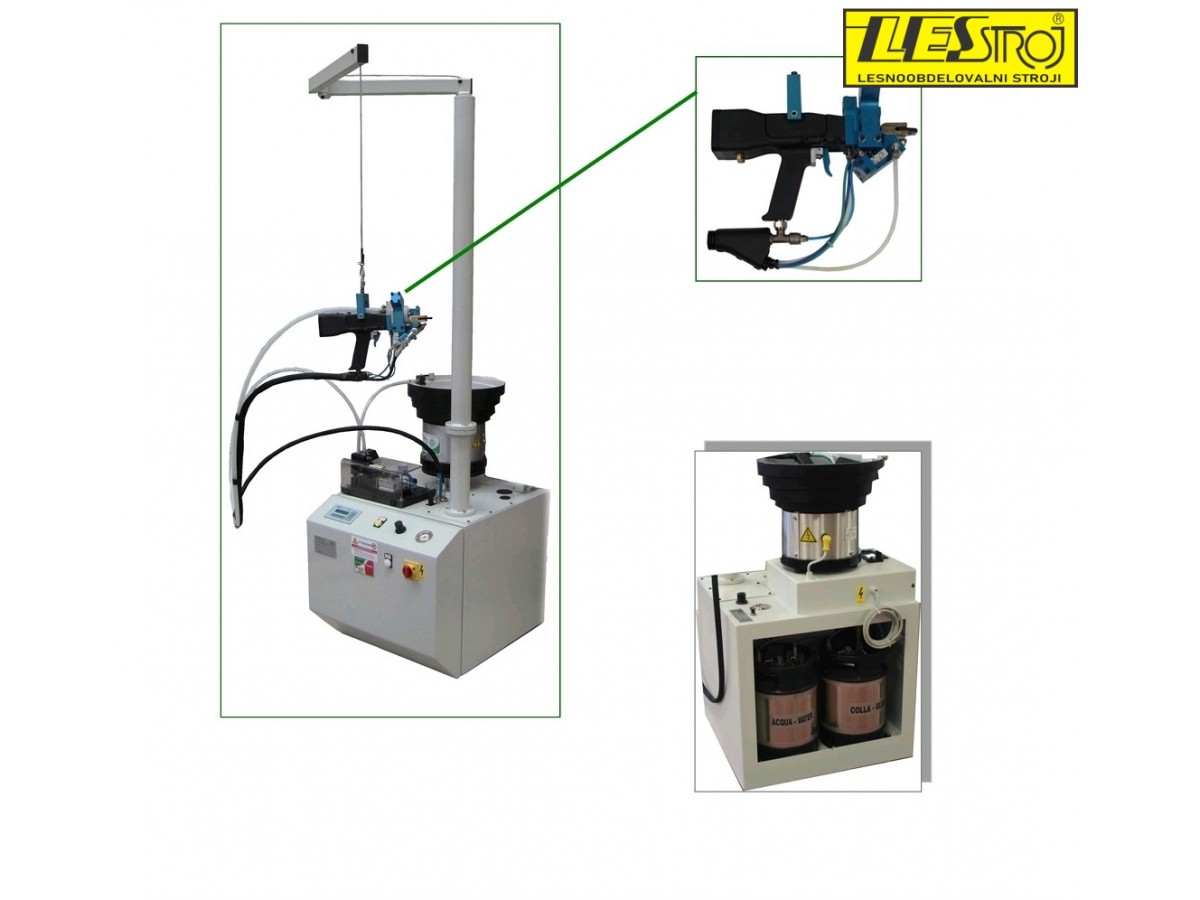

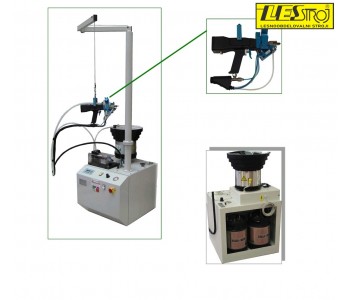

STEMA machine for dowel punching GLF
STEMA Spinamatic GLF is a specialized device, designed for simple and efficient placement of dowels. With its gun-style design and additional counterweight, it allows for easy handling and at the same time the wheels at the bottom of a simple transport device.
STEMA Spinamatic GLF is the right choice for any carpentry workshop or industrial plant that wants to speed up the process of inserting dowels with glue.
Technical specifications are as follows:
Required power: 0.7 kW
Possible dimensions of dowels: diameter 6/8/10/12 mm (choose upon order), length 25 - 50 mm
Glue tank capacity: 9 kg
Weight: 130 kg
Working pressure: 6 bar
External dimensions: 600 x 680 x 1060 mm
Power supply: 230 / 50 V / Hz
Driving capacity: 60 dowels/min
In accordance with CE EN204, it can use D1 grade glue with a viscosity of less than 590 mPas.
STEMA Spinamatic GLF also contains many advanced functions to increase efficiency and ease of use:
-Electronic setting of glue for accurate dosing
- Vibrating feeder for quick and easy insertion of dowels
-PLC programming for automation of processing cycles
-Built-in cleaning device for easy maintenance
- The device is CE certified to ensure safety and quality.
